Removing Exhaust Flap Actuator
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.

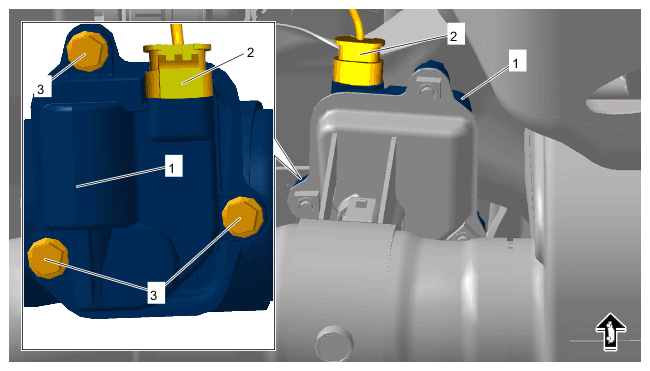

- Remove exhaust flap actuator -1- .
Exhaust flap actuator
- 1.1 Release and disconnect electric plug connection for exhaust flap actuator -2- .
- 1.2 Unscrew screws on exhaust flap actuator -3- .
- 1.3 Pull exhaust flap actuator -1- up out of the exhaust pipe.
