Removing Twin Tailpipe
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.
- Remove twin tailpipe -1 and 2- .

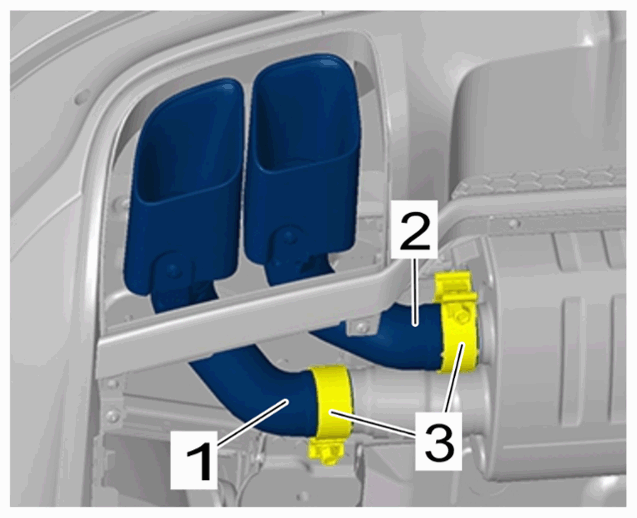

Twin tailpipe
- 1.1 Mark the installation position of the tailpipes.
- 1.2 Loosen screws on clamps -3- .
- 1.3 Pull outer tailpipe -1- off the rear silencer.
- 1.4 Pull inner tailpipe -2- off the rear silencer.
