Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Heat shield on underbody, right	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)

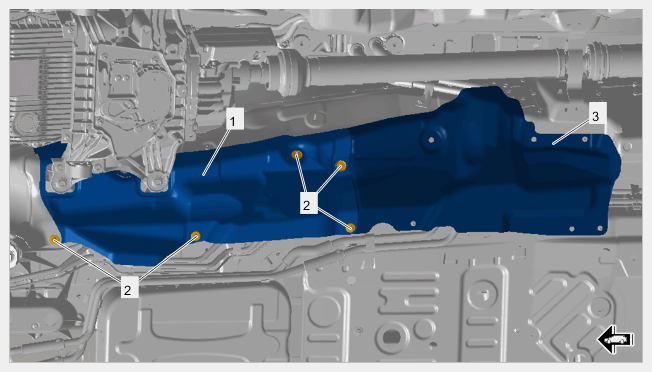

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shields on right underbody
Heat shield on centre tunnel, left	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)

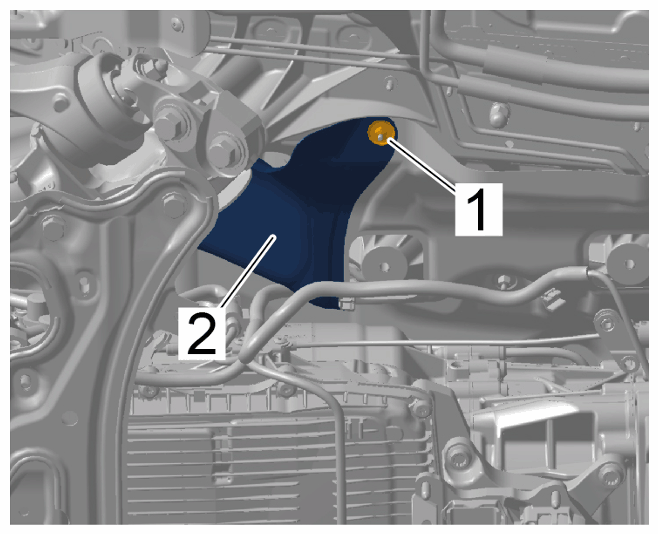

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Heat shield on tunnel, left	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)

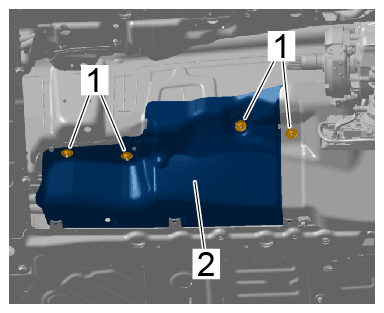

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on underbody, left
Fastening nut securing heat shield to rear silencer	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)

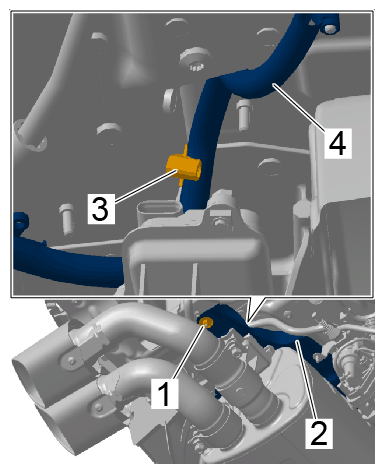

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
Speed nut for heat shields		Tightening torque	2.5 Nm (1.75 ftlb.)
Heat shield to body	Hexagon nut	Tightening torque	2.1 Nm (1.6 ftlb.)
Screw securing tank restraining strap to body	M8 x 40/5 each	Torque	20 Nm (14.8 ftlb.)
Screw securing tank restraining strap to body	M8 x 50/3 each	tightening torque	20 Nm (14.8 ftlb.)
