Removing Heat Shields For Tunnel At The Right

WARNING: This page is about a different variant/trim than selected.
  1. Detach heat shields for tunnel at the right -1, 2 and 3-  .

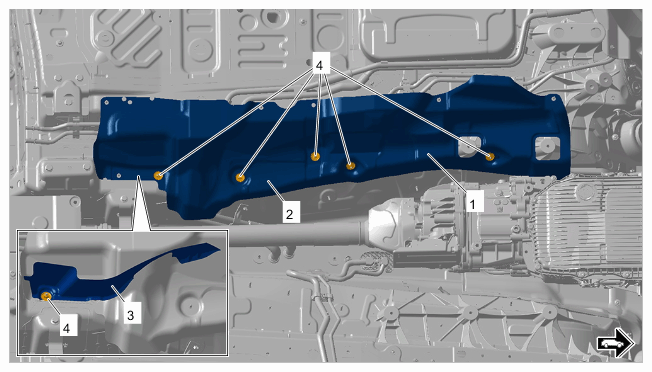

G15241420Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shields for tunnel at the right

  1. 1.1 Unscrew speed nuts -4-  .
  2. 1.2 Remove heat shields for tunnel at the right -1, 2 and 3-  .
