Removing Heat Shields For Tunnel At The Left

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shields for tunnel at the left -1 and 2-  and holders -3-  .

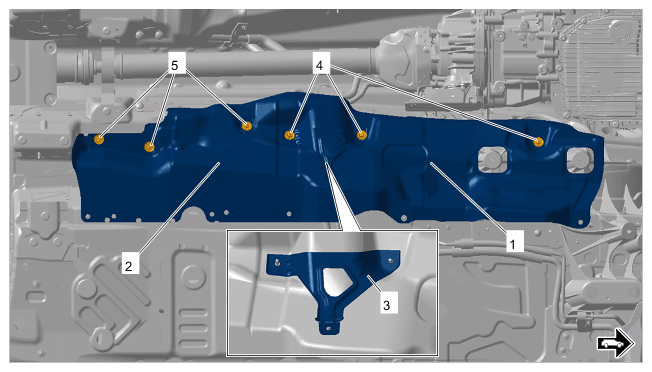

G15241421Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shields for tunnel at the left

  1. 1.1 Unscrew speed nuts -4-  .
  2. 1.2 Remove heat shields for tunnel at the left -1 and 2-  and holders -3-  .
