Removing Heat Shields For Tailpipes

WARNING: This page is about a different variant/trim than selected.

Information

The removal steps are described for one side. Removal on the other side is identical.

  1. Remove heat shield for tailpipe -1-  .

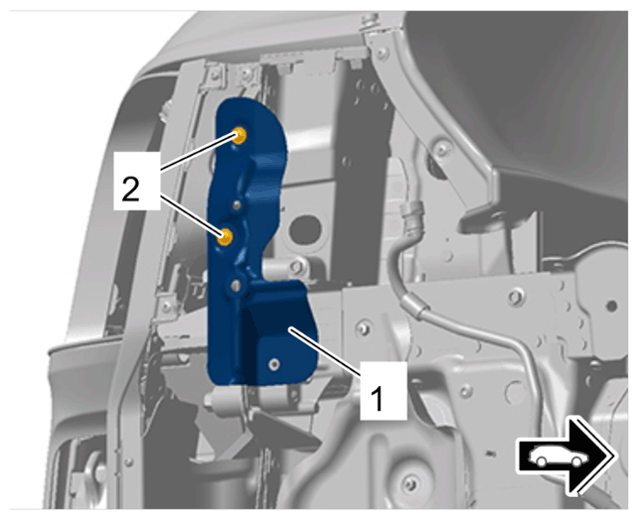

G15241416Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for tailpipe

  1. 1.1 Unscrew and remove screws -2-  .
  2. 1.2 Remove heat shield for tailpipe -1-  .
