Removing Heat Shield For Rear Silencer

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield for rear silencer -1-  .

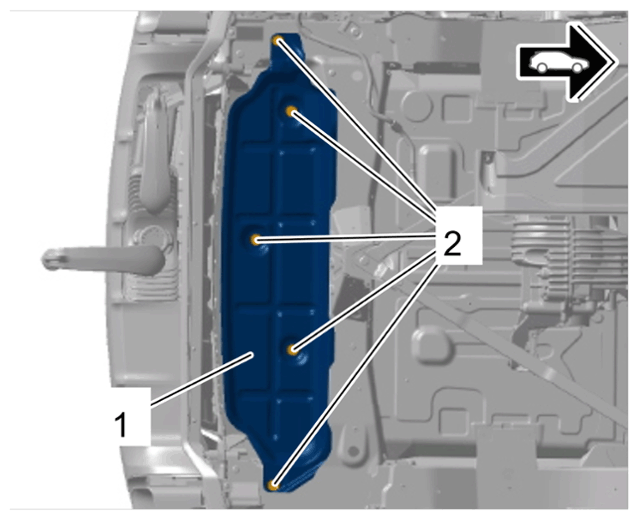

G15241417Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for rear silencer

  1. 1.1 Unscrew speed nuts -2-  .
  2. 1.2 Take off heat shield -1-  .
