Removing Heat Shield For Fuel Tank

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield for fuel tank -1-  .

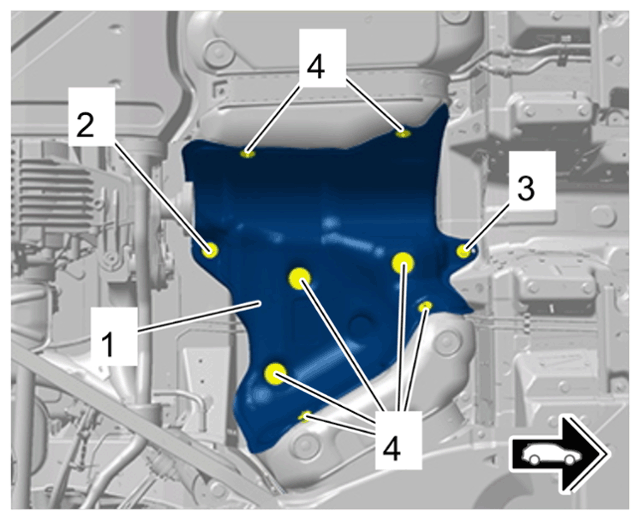

G15241418Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for fuel tank

  1. 1.1 Unscrew and remove screws -2 and 3-  .
  2. 1.2 Lever off clamping washers -4-  .
  3. 1.3 Remove heat shield for fuel tank -1-  .
