Removing Heat Shield For Centre Rear Floor

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield for centre rear floor -1-  .

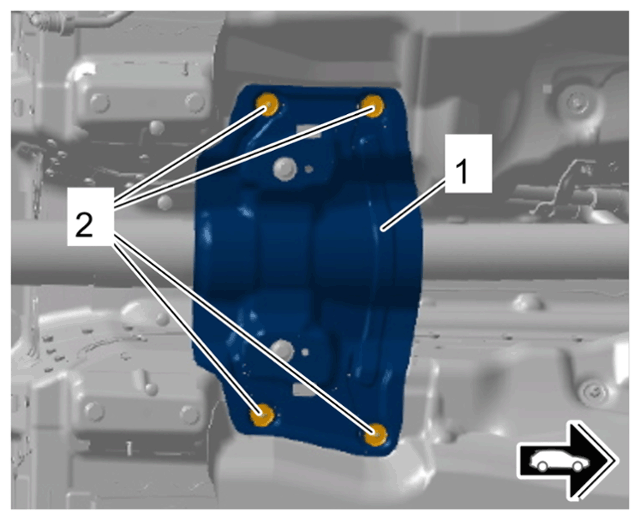

G15241419Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for centre rear floor

  1. 1.1 Unscrew speed nuts -2-  .
  2. 1.2 Remove heat shield for centre rear floor -1-  .
