Installing Heat Shields For Tunnel At The Left

WARNING: This page is about a different variant/trim than selected.
  1. Install heat shields for tunnel at the left -1 and 2-  and holders -3-  .

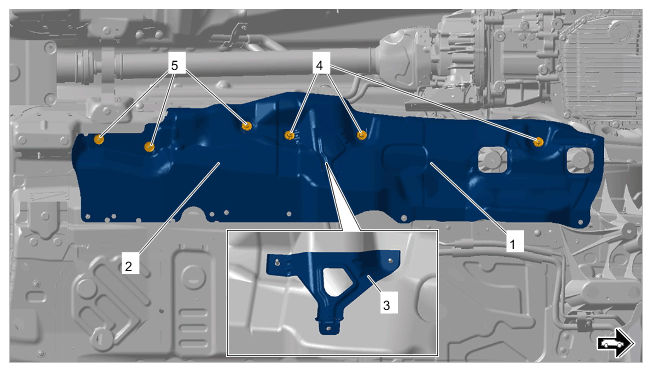

G15241427Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shields for tunnel at the left

  1. 1.1 Position heat shields for tunnel at the left -1 and 2-  and holders -3-  .
  2. 1.2 Tighten speed nuts -4 and 5-.

Speed nuts -4-  :

> Tightening torque 2.5 Nm (1.75 ftlb.)

Speed nuts -5-  :

> Tightening torque 2.5 Nm (1.75 ftlb.)
