Installing Heat Shields For Tailpipes

WARNING: This page is about a different variant/trim than selected.

Information

The installation steps are described for one side. Installation on the other side is identical.

  1. Install heat shield for tailpipe -1-  .

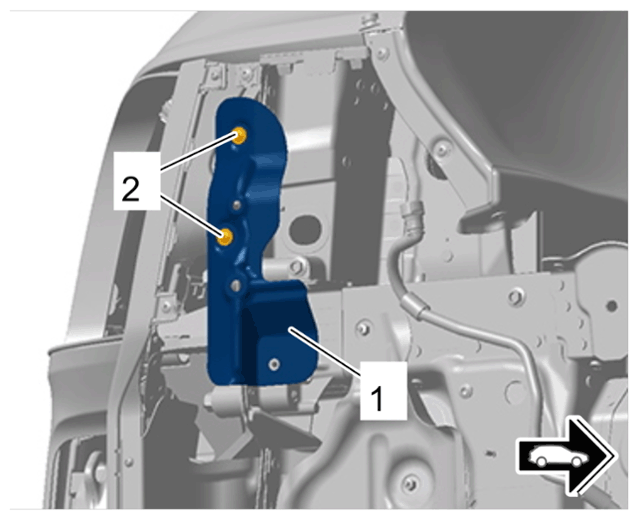

G15241422Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for tailpipe

  1. 1.1 Position heat shield for tailpipe -1-  .
  2. 1.2 Tighten screws -2-  .

    > Tightening torque 2.5 Nm (1.75 ftlb.)
