Installing Heat Shield For Rear Silencer
WARNING: This page is about a different variant/trim than selected.
- Install heat shield for rear silencer -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

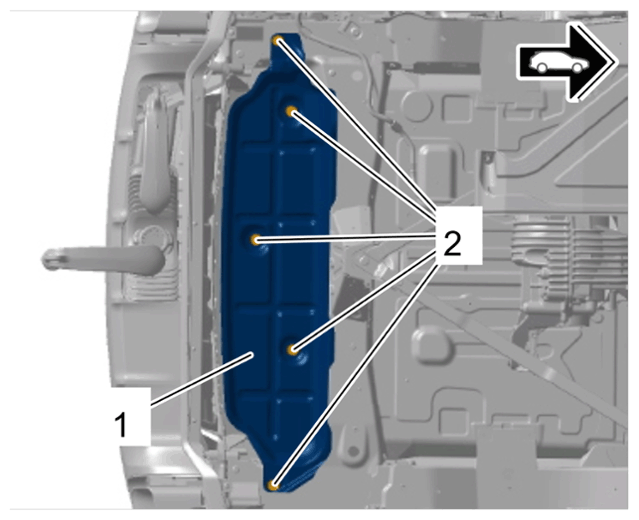

Heat shield for rear silencer
- 1.1 Position heat shield for rear silencer -1-
.
- 1.2 Tighten speed nuts -2-
.
> Tightening torque 2.5 Nm (1.75 ftlb.)
