Installing Heat Shield For Fuel Tank

WARNING: This page is about a different variant/trim than selected.

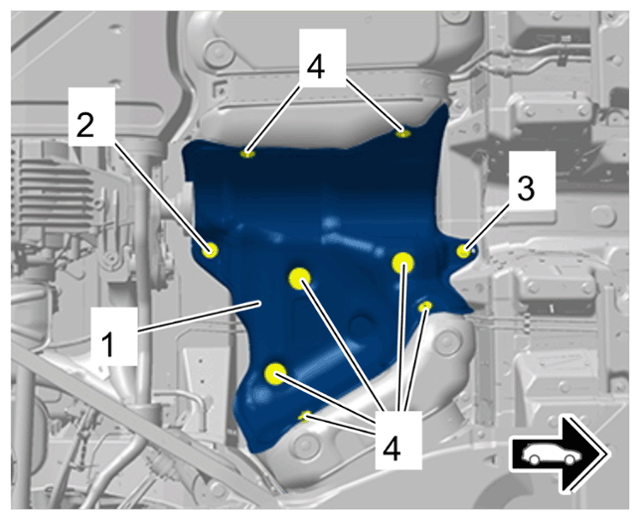

  1. Install heat shield for fuel tank -1-  .
G15241424Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for fuel tank

  1. 1.1 Position heat shield for fuel tank -1-  .
  2. 1.2 Tighten screw -2-  .

    > Torque 20 Nm (14.8 ftlb.)

  3. 1.3 Tighten screw -3-  .

    > Tightening torque 20 Nm (14.8 ftlb.)

  4. 1.4 Press on clamping washers -4-  .
