Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

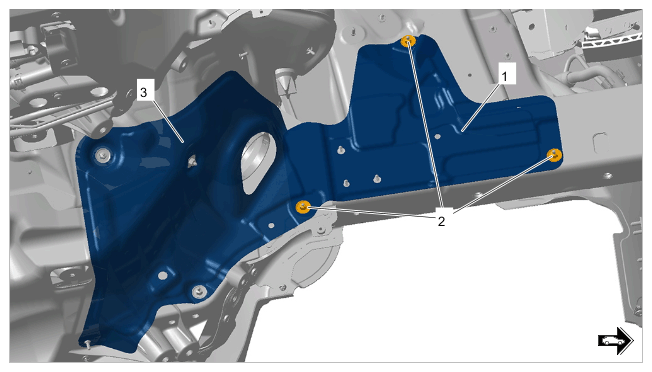

Nuts securing heat shield on firewall upper section to body	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on firewall upper section

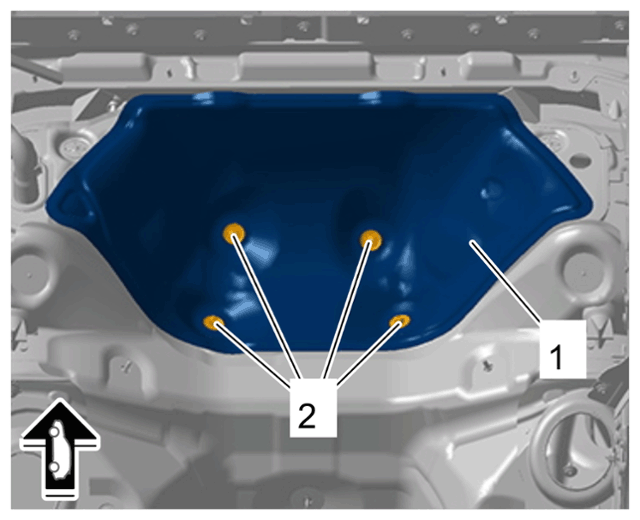

Nuts securing heat shield on right longitudinal member to body	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat protection on right longitudinal member

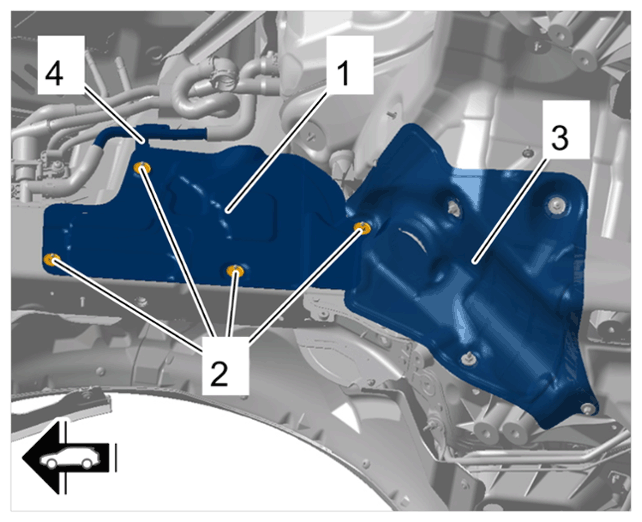

Nuts securing heat shield on front right longitudinal member to body	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat protection on front right longitudinal member

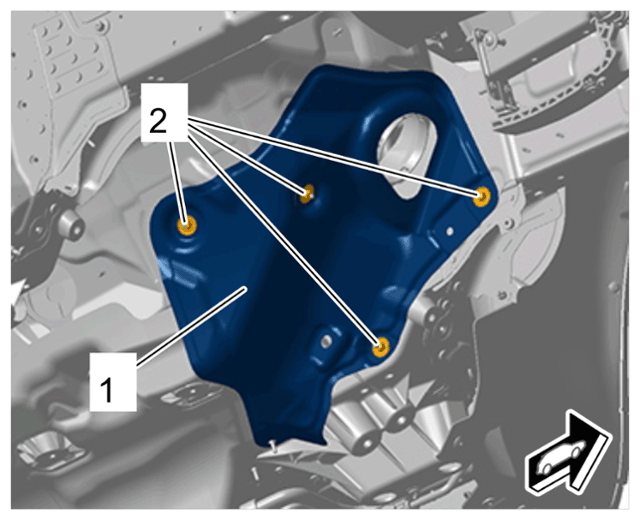

Nuts securing heat shield on left longitudinal member to body	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on left longitudinal member

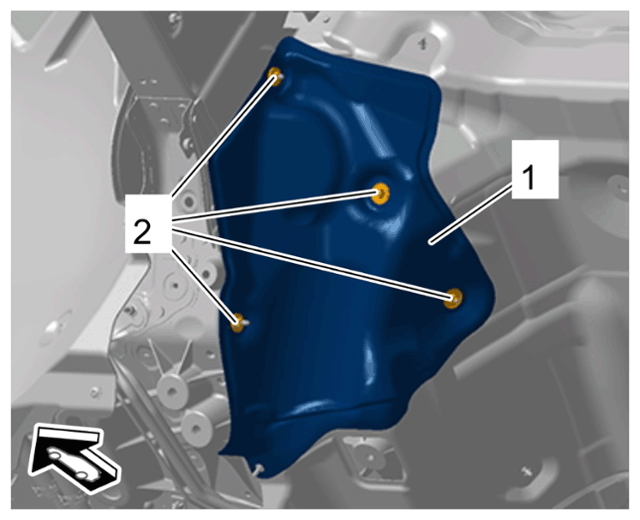

Nuts securing heat shield on front left longitudinal member to body	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on front left longitudinal member
