Removing Heat Shield On Front Left Longitudinal Member

WARNING: This page is about a different variant/trim than selected.
  1. Remove heat shield on front left longitudinal member -1-  .

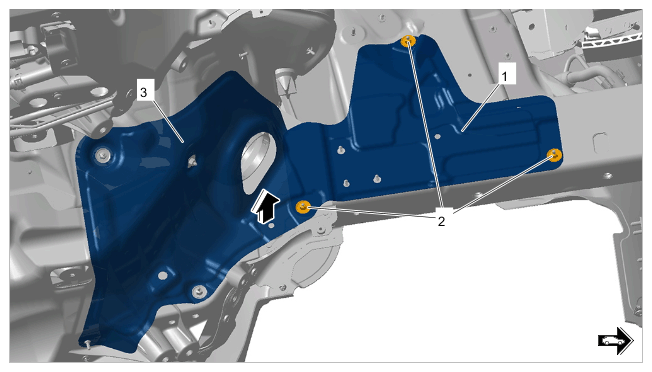

G15241437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on front left longitudinal member

  1. 1.1 Unscrew speed nuts -2-  .
  2. 1.2 Pull heat shield on left longitudinal member -3-  slightly in direction of -Arrow-  .
  3. 1.3 Remove heat shield on front left longitudinal member -1-  .
