Removing Heat Shield On Firewall

WARNING: This page is about a different variant/trim than selected.

Information

To prevent damage, the heat shields on the left and right longitudinal members must be removed beforehand.

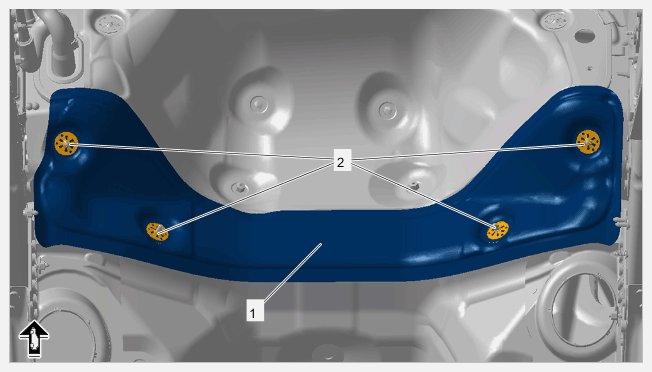

  1. Remove heat shield on firewall lower section -1-  .
    G15241438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on firewall lower section

    1. 1.1 Lever off clamping washers -2-  .
    2. 1.2 Remove heat shield on firewall lower section -1-  .

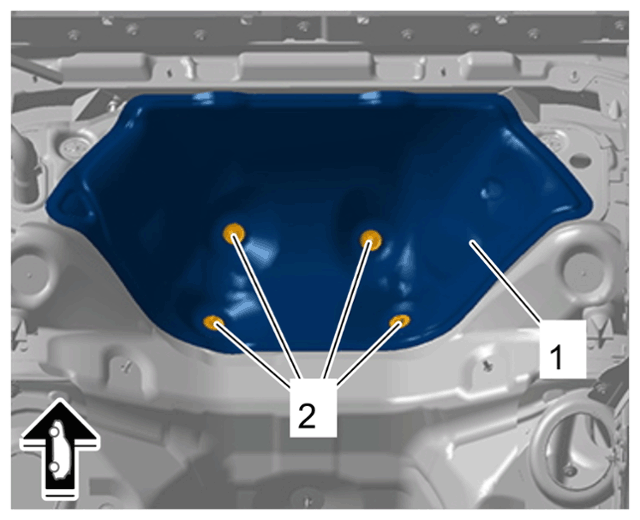

  2. Remove heat shield on firewall upper section -1-  .
G15241439Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on firewall upper section

  1. 2.1 Unscrew speed nuts -2-  .
  2. 2.2 Remove heat shield on firewall upper section -1-  .
