Installing Heat Shield On Front Left Longitudinal Member
WARNING: This page is about a different variant/trim than selected.
- Install heat shield on front left longitudinal member -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

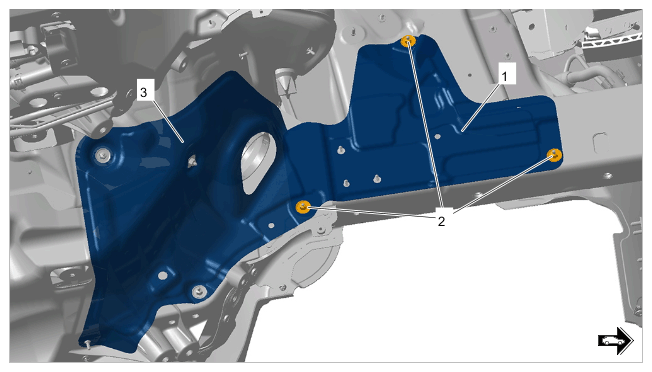

Heat shield on front left longitudinal member
- 1.1 Position heat shield on front left longitudinal member -1-
.
- 1.2 Position heat shield on left longitudinal member -3-
.
- 1.3 Tighten speed nuts -2-
.
> Tightening torque 5 Nm (3.5 ftlb.)
