Installing Heat Shield On Firewall

WARNING: This page is about a different variant/trim than selected.
  1. Install heat shield on firewall upper section -1-  .

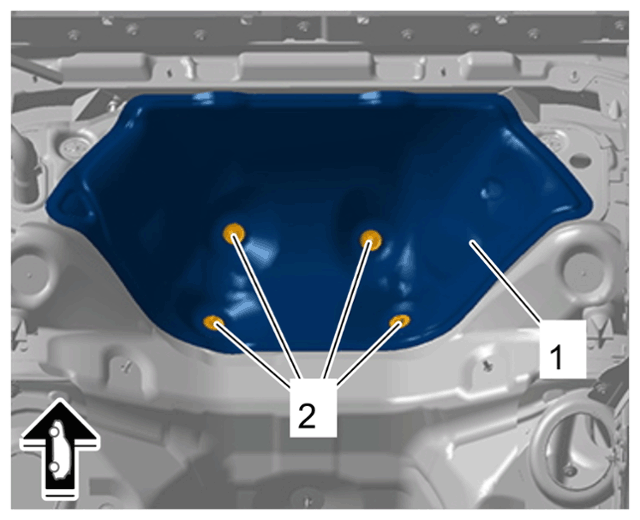

    G15241440Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on firewall upper section

    1. 1.1 Position heat shield on firewall upper section -1-  .
    2. 1.2 Tighten speed nuts -2-  .

      > Tightening torque 2.5 Nm (1.75 ftlb.)

  2. Install heat shield on firewall lower section -1-  .

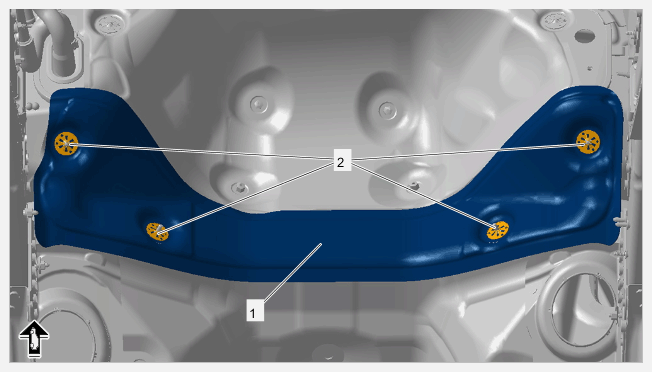

G15241441Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on firewall lower section

  1. 2.1 Position heat shield on firewall lower section -1-  .
  2. 2.2 Press on clamping washers -2-  .
