Removing Heat Shield
WARNING: This page is about a different variant/trim than selected.
- Remove heat shield -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

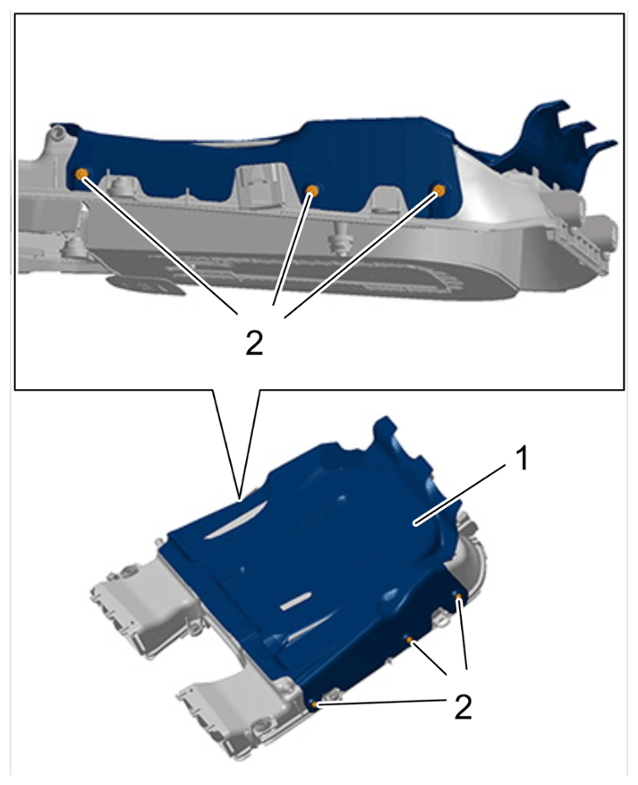

Heat shield
- 1.1 Unscrew and remove screws -2-
.
- 1.2 Remove heat shield -1-
from air cleaner housing.
