Removing Pulse Sender For Interior Acoustics

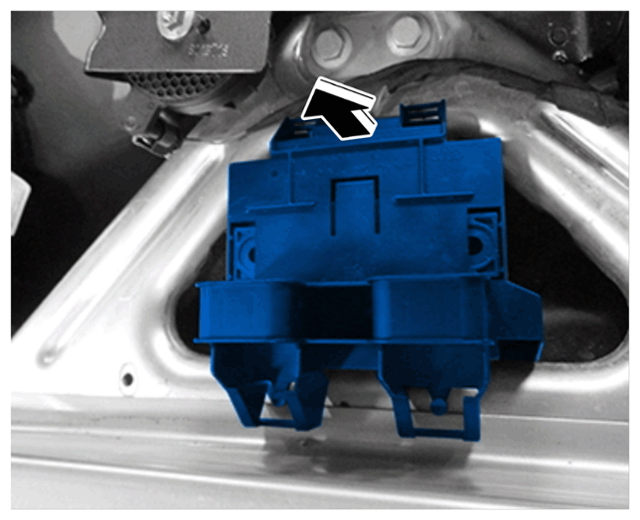

1. Unclip holder for pulse sender for interior acoustics at the rear.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder for pulse sender for interior acoustics

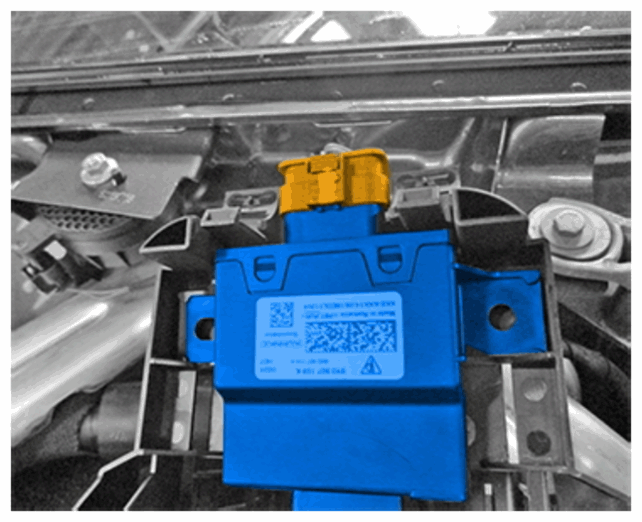

2. Release and pull off electric plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

3. Remove pulse sender for interior acoustics from the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulse sender for interior acoustics

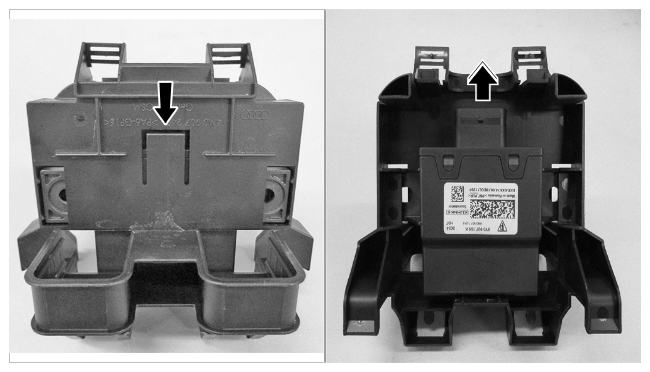

1. 3.1 Unclip pulse sender for interior acoustics at the back from the holder.
2. 3.2 Push pulse sender for interior acoustics at the front up out of the holder.
