Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

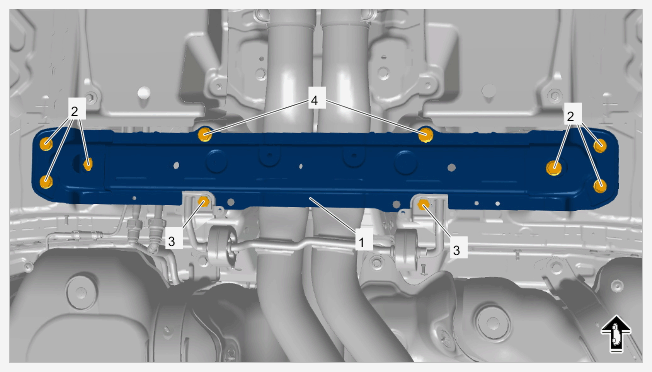

| Tunnel reinforcement plate to underbody | Item 2, 3, 4 | Tightening torque | 49 Nm (36 ftlb.) | ||
|
Tunnel strut |
|||||
| Screw securing rear exhaust system to body | M8 | Tightening torque | 23 Nm (17 ftlb.) | ||
| Exhaust clamp | Replace | Tightening torque | 23 Nm (17 ftlb.) | ||
