Removing Exhaust System

1. Remove tunnel strut -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

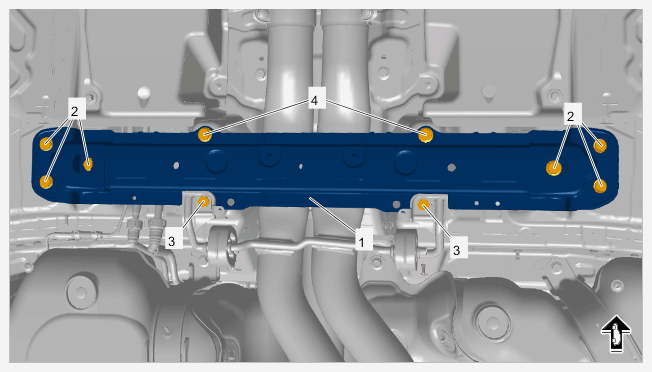

   Tunnel strut

   1. 1.1 Unscrew screws -2, 3 and 4-  and remove tunnel strut -1-  .
2. Secure the exhaust system using >VAS 6931 - engine and gearbox jack-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

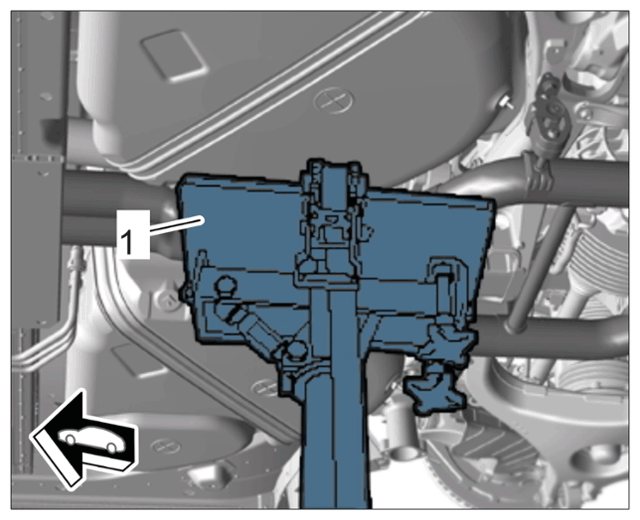

   Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)

   1. 2.1 Position >VAS 6931 - engine and gearbox jack-1-  under the exhaust system in such a way that both pipes can be supported at the same time.
   2. 2.2 Guide tension strap around both pipes and secure it.
   3. 2.3 Raise the exhaust system slightly.
3. Make sure the catalytic converter -1-  does not snap off.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

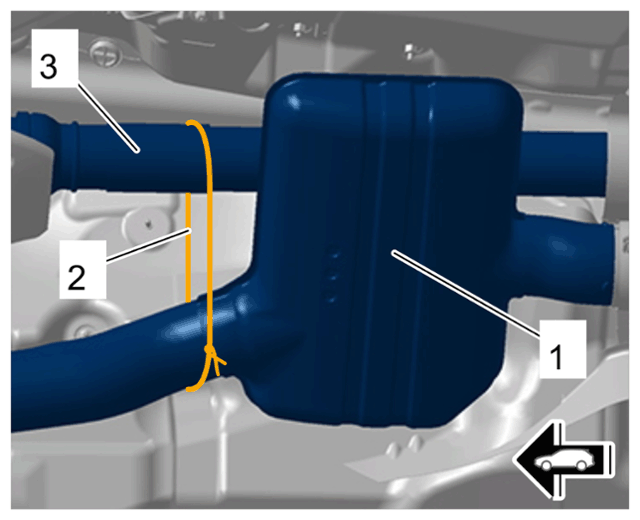

   Catalytic converter secured

   1. 3.1 Secure catalytic converter -1-  with wire/tie-wraps -2-  on the cardan shaft -3-  .
4. Loosen exhaust system -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

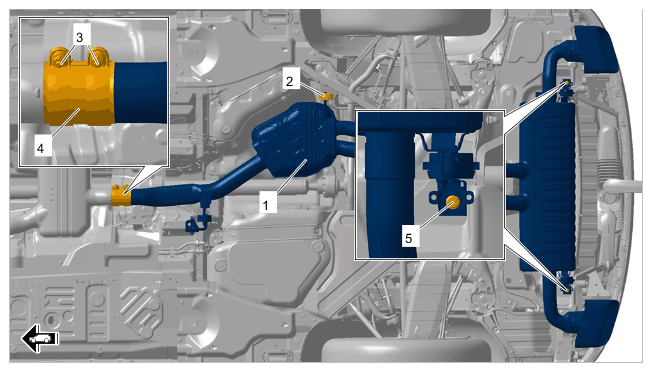

   Exhaust system

   1. 4.1 Pull rubber holder -2-  off the exhaust bracket.
   2. 4.2 Loosen screws -3-  and push clamp -4-  towards the exhaust system -1-  .
      1. 4.2.1 Replace clamp -4-  .
   3. 4.3 Unscrew screws -5-  .
5. Remove exhaust system.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

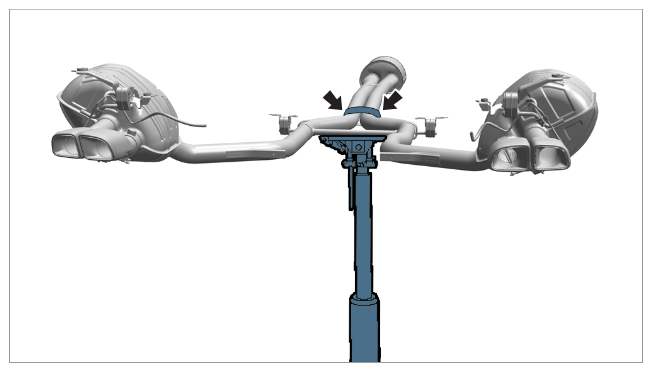

Exhaust system on VAS 6931 engine and gearbox jack (similar to illustration)

1. 5.1 Guide the exhaust system, which is secured with a tension strap -Arrows-  , downwards using the >VAS 6931 - engine and gearbox jack  .
