Removing Oil Separator

NOTIFICATION

Dirt and contamination

• Risk of damage to units or components
  1. → Protect components from dirt and contamination.
  2. → Clean or replace dirty components.

1. Remove oil pipe -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

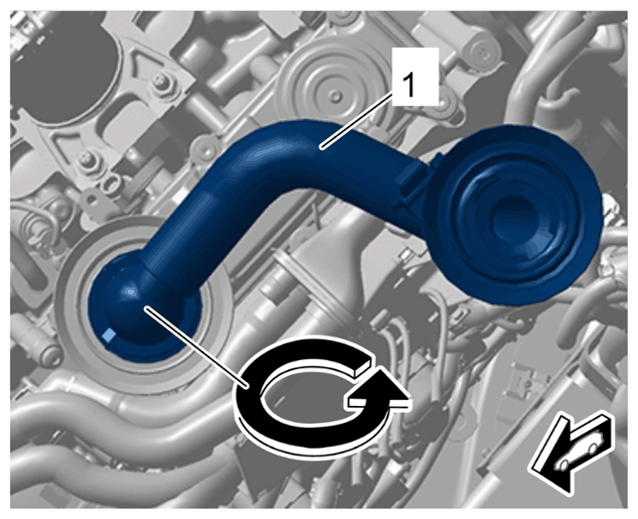

   Oil pipe on oil separator

   1. 1.1 Turn oil pipe -1-  anti-clockwise to open it and remove it. -Arrow-
2. Press release button on both sides -arrow A-  and loosen adapter -1-  on the oil separator.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

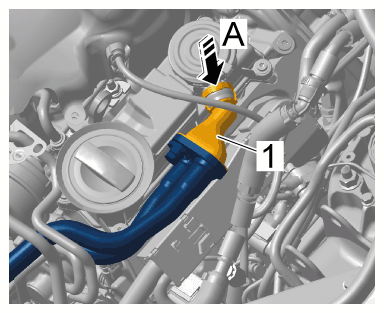

   Adapter for oil separator

   Information

   Screws on the oil separator are permanently connected. If screws are damaged, press the screws out of the oil separator and replace them.

3. Remove oil separator -1-  .

Fig 1: Oil Separator Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

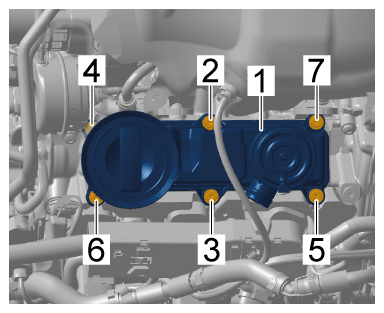

Oil separator

1. 3.1 Loosen screws -2 to 7-  .
2. 3.2 Remove oil separator -1-  .
