Removing Engine Carrier

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    1. → Secure components to prevent them from falling down.

Information

This work can only be performed when the engine has been supported on the body.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Only right engine carrier:

    Disconnect ground line -1-  .

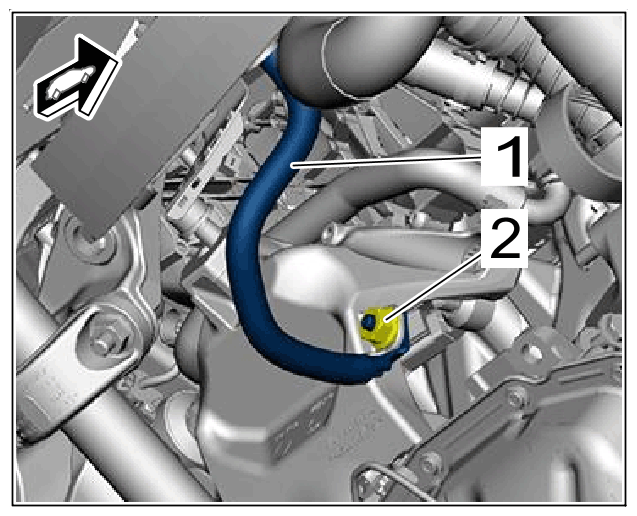

    G15208452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground line

    1. 1.1 Unscrew nut -2-  and move ground lines -1-  aside.
  2. Remove engine carrier -1-  .

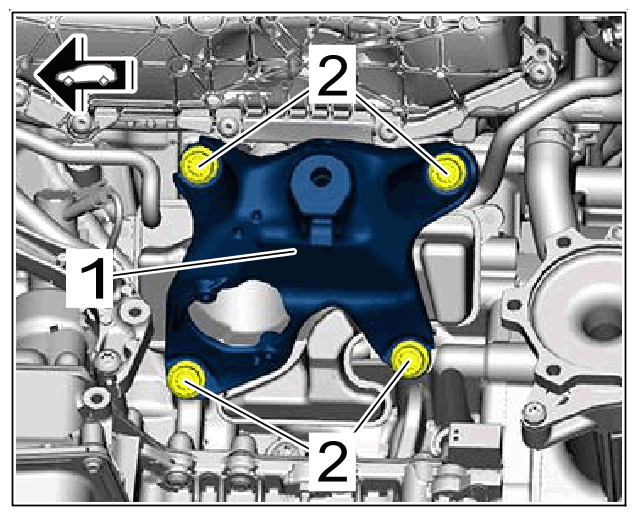

G15208453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Engine carrier

  1. 2.1 Unscrew screws -2-  .
  2. 2.2 Remove engine carrier -1-  .
