Preliminary Work

1. Remove oil guide housing.

   > Removing and installing oil guide housing (V6 Turbo)

2. Remove vibration damper.

   > Removing and installing crankshaft vibration damper

3. Remove air-conditioning compressor.

   > Removing and installing air conditioning compressor

4. Remove air-conditioning compressor bracket -5-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

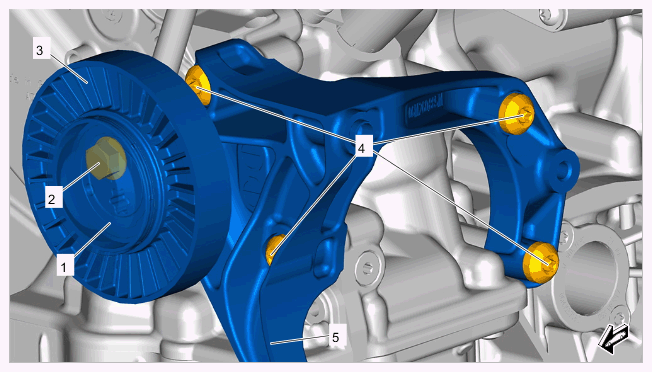

Air-conditioning compressor bracket

1. 4.1 Remove tensioning roller -3-  .
   1. 4.1.1 Carefully lever off dust boot -1-  using a suitable tool.
   2. 4.1.2 Unscrew screw on tensioning roller -2-  .
   3. 4.1.3 Remove tensioning roller -3-  .
2. 4.2 Unscrew screws on air-conditioning compressor bracket -4-  .
3. 4.3 Remove air-conditioning compressor bracket -5-  .
