Supporting Engine On The Body (Engine Safety Device)

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
1. → Secure components to prevent them from falling down.

Information

Work on one side of the vehicle is described here; the same work must be carried out on the other side.

Remove holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

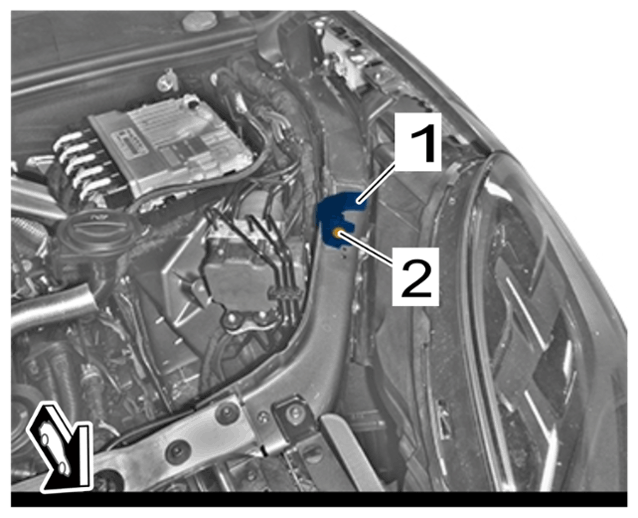

Holder for front cover
1. 1.1 Pull locking pin of the expansion rivet -2- up and out using a suitable tool and unclip expansion rivet -2- .
2. 1.2 Remove holder -1- .
Prepare > 10-222A - support bracket .
1. 2.1 Attach two spindles to > 10-222A - support bracket .
2. 2.2 Attach supports 10-222 A/1 at the left and right to > 10-222A - support bracket . Fit the screws so that the supports 10-222 A/1 can still be turned and moved.
Information

The position of the engine transport eyebolts can vary depending on the engine variant.
> 10-222A - Support bracket-1- must now be attached to the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

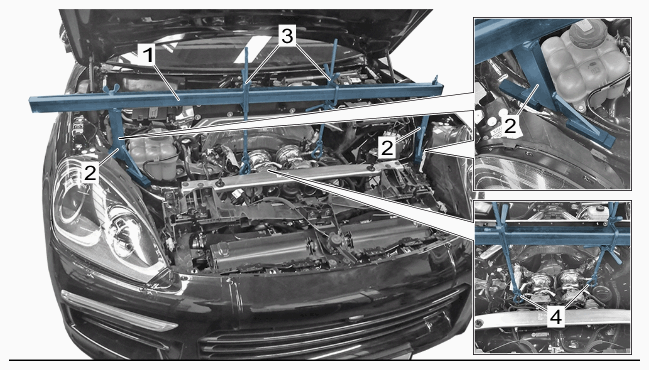

Engine safety device
1. 3.1 Position supports 10-222 A/1 -2- on the upper longitudinal members by moving them at the slot in the > 10-222A - support bracket-1- .
2. 3.2 Check that the supports 10-222 A/1 -2- are fitted correctly on the upper longitudinal members, tighten screws hand-tight and secure supports using 10-222 A/34 .
3. 3.3 Hook in hooks -4- on the engine transport eyebolts and pre-tension spindles -3- slightly.
4. 3.4 Check again that the supports 10-222 A/1 -2- are fitted correctly.
Carry out the required work on the vehicle and remove > 10-222A - support bracket again.
Information

Work on one side of the vehicle is described here; the same work must be carried out on the other side.
Install holder -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for front cover
