Securing Engine On Assembly Support

WARNING: This page is about a different variant/trim than selected.

Secure engine to assembly support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

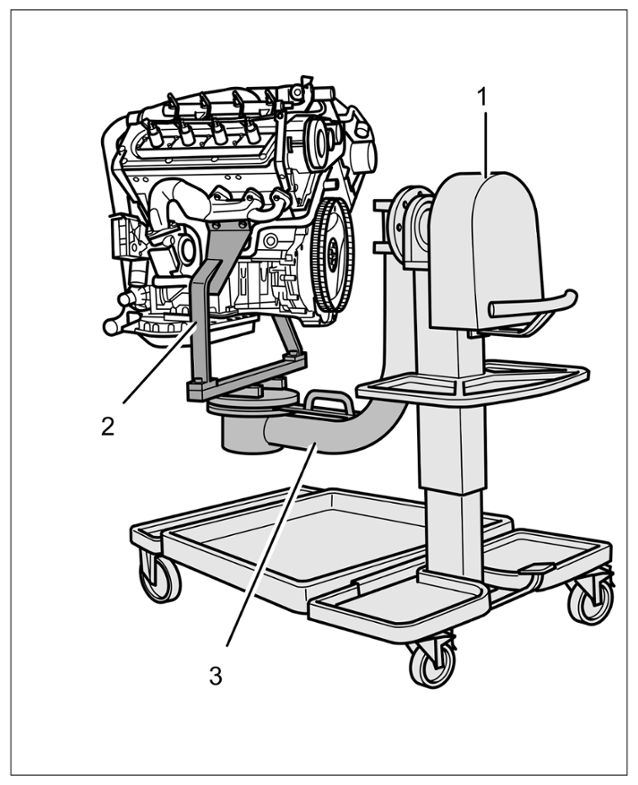

Securing engine on assembly support
1. 1.1 > VAS 6095/1 - Universal mounting-3- must be secured to > VAS 6095A - engine and gearbox bracket-1- .
2. 1.2 > VAS 6095/1-15 - Bracket-2- must be secured on the engine block.
3. 1.3 Secure engine with > VAS 6095/1-17A - bracket-2- on the > VAS 6095/1 - universal mounting-3- as shown.
Suspend engine from the workshop crane.
