Preliminary Work
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Heavy components
- Risk of squashing
- → Wear personal protective gear.
- → Get someone to help if necessary.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
- → Secure components to prevent them from falling down.
Information
The pictures shown in this document may differ from the original.
Information
Workshop crane and transport frame

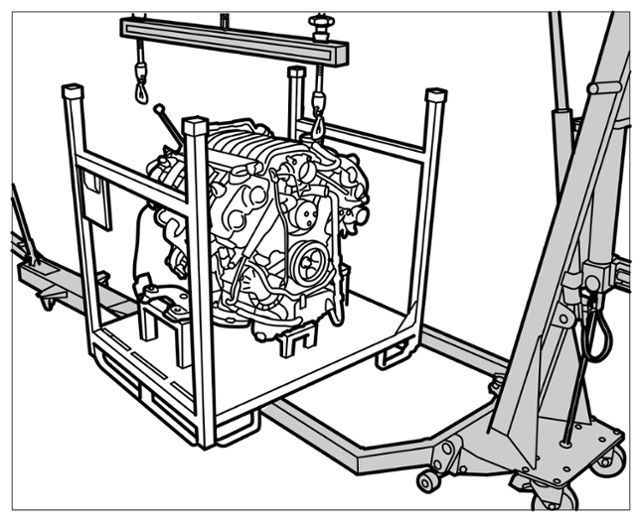

- When removing the new engine from the transport frame, it may be necessary to raise the transport frame at the side (flat jack or similar). > Workshop crane and transport frame
- When removing the new engine from the transport frame, it may be necessary to safeguard the engine against lateral movement using a second worker and against scratching by covering it with a blanket.
- Lift the engine with a workshop crane.

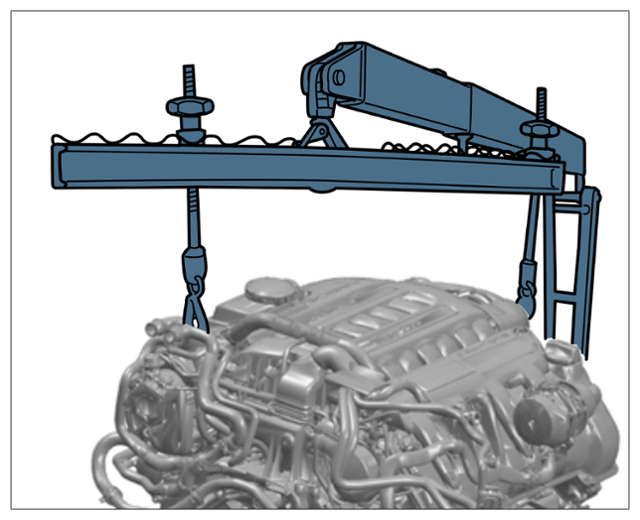

Workshop crane with lifting tackle (similar to illustration)
- 1.1 > 3033 - Lifting tackle must be engaged in the transport eyebolts on the engine. Raise the workshop crane slightly and tension the spindles slightly. The lifting tackle must be adjusted evenly.
- Remove all-wheel final drive.
> Refer to the appropriate service information.
- Remove engine carrier -2- at the left and right.
Right engine carrier

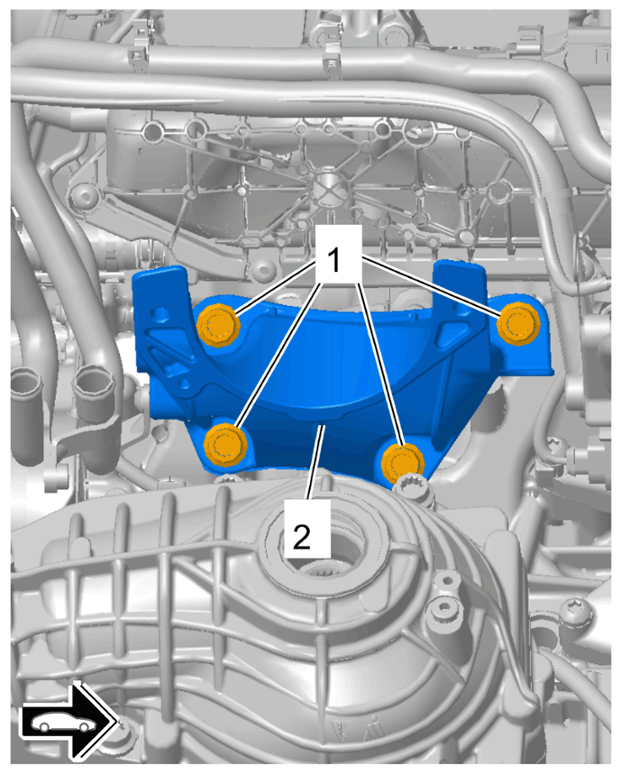

- 3.1 Unscrew screws -1- and remove engine carrier -2- .
