Adjusting Rear-Axle Toe

WARNING: This page is about a different variant/trim than selected.

Adjust rear-axle toe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

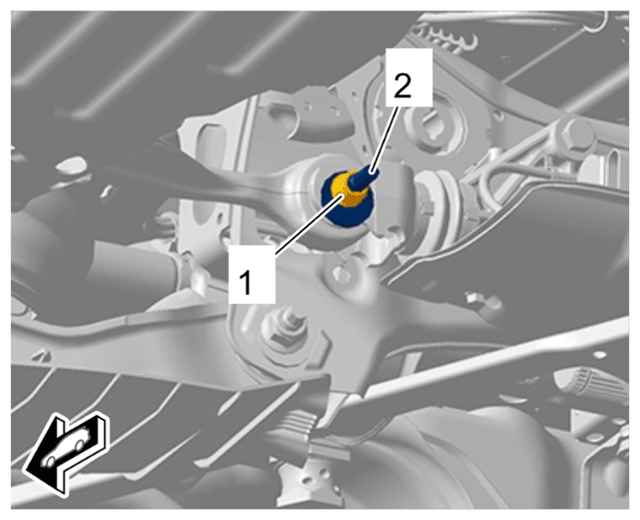

Eccentric screw for rear-axle toe adjustment
1. 1.1 Check toe value.
  > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT
2. 1.2 Loosen nut -1- .
3. 1.3 Turn toe eccentric adjuster -2- to adjust the toe.
  > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT
4. 1.4 Tighten nut -1- using > T40183 - interchangeable head .
  > Tightening torque 90 Nm (66 ftlb.) (66.4 ftlb.)
5. 1.5 Check toe value again.
