Adjust Front Axle Toe

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

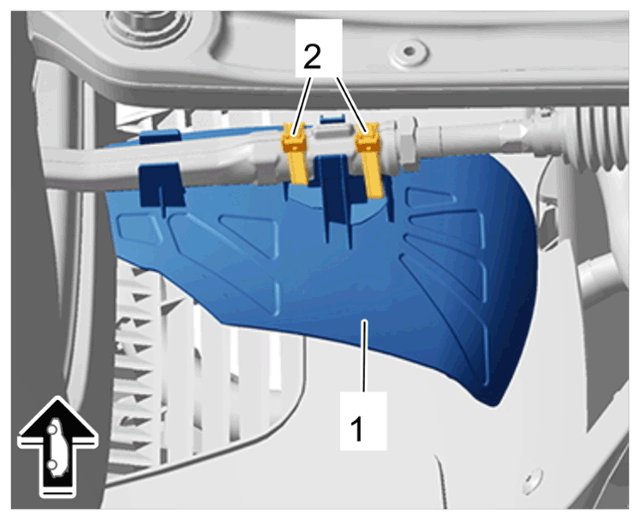

Brake air spoiler

1. 1.1  Cut tie-wrap -2-  and pull brake air spoiler -1-  off the tie-rod ball.

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

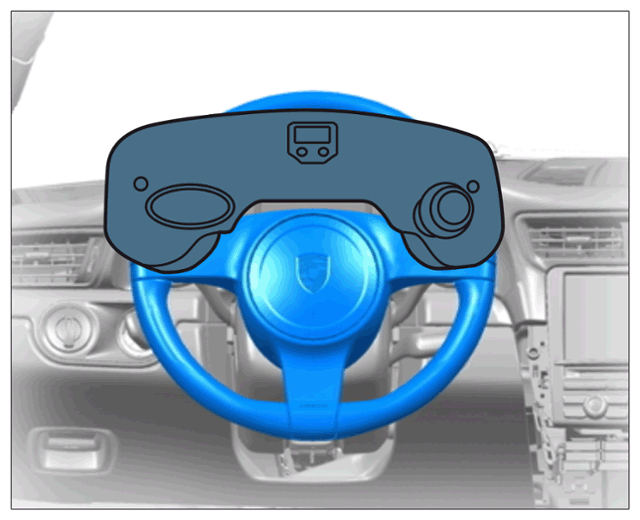

   Steering wheel alignment gauge (example)

   • For fast and reliable steering wheel alignment in center position, use a  > VAS 6826 - Steering wheel balance (with integrated angle measure ment box).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

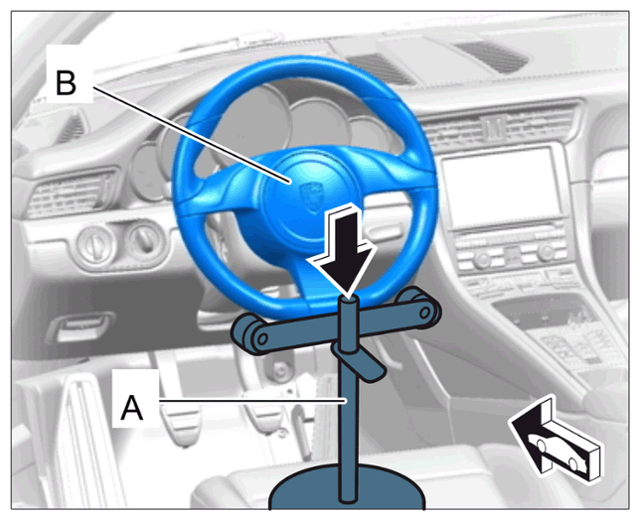

Steering wheel holder (example)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

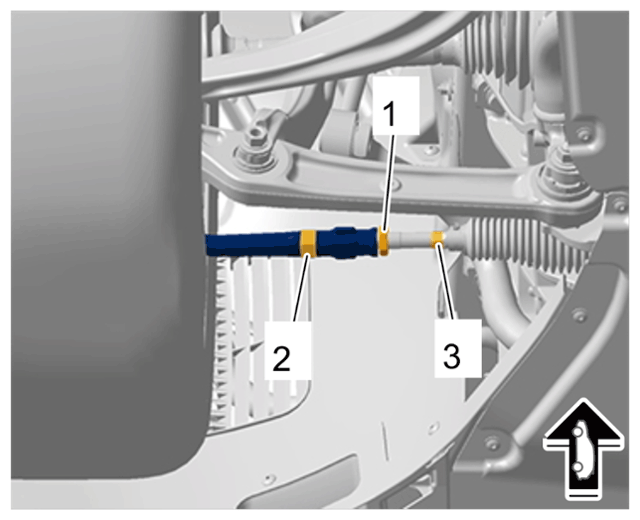

Front axle tie rod

1. 3.1  Check toe value.

   > 4495TW SETTING VALUES FOR SUSPENSION ALIGNMENT

   CAUTION: Electrically moved components

   • Danger of limbs being trapped
     • Switch off electric power to drive motor.
     • Make sure it does not switch on again.
     • Check that there is no electric charge.

   Information

   The PDCC system can be active when the ignition is switched on (even when the vehicle is stationary). To avoid injury/crushing, only work near the anti-roll bar, lower trailing arm and bellows of the steering gear when the ignition is switched off and always allow for the run-on time of 60 seconds.

2. 3.2  Loosen lock nut -1-  and counter at the tie-rod ball -2-  while doing this.

   Information

   Make sure that the bellows are not twisted after turning the tie rods!

3. 3.3  Adjust the toe at the left and right wheel at the hexagon -3-  .

   > 4495TW SETTING VALUES FOR SUSPENSION ALIGNMENT

4. 3.4  Tighten lock nut -1-  to > Tightening torque 80 Nm (59 ftlb.)  and counter at the tie-rod ball -2-  while doing this.
5. 3.5  Check toe value again.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake air spoiler

1. 4.1  Push brake air spoiler -1-  onto the tie-rod ball and fit new tie-wraps -2-  in the brake air spoiler -1-  .
2. 4.2  Tighten tie-wrap -2-  using > VAS 6927 - tie-wrap pliers  .
