Removing Wheel Electronics
WARNING: This page is about a different variant/trim than selected.
- Loosen screw -1-
for the wheel electronics unit.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

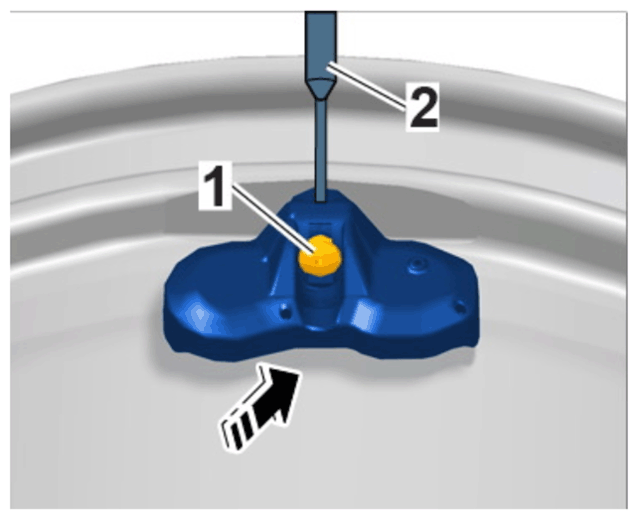

Wheel electronics mounting
- 1.1
If necessary, counter in the bore at the valve foot using a suitable assembly pin -2-
(for example, steel pin 0 approx. 1.8 mm).
- 1.2
Replace Torx screw.
- Undo the union nut and take out the valve.
