Removing Oil Pan

WARNING: This page is about a different variant/trim than selected.
WARNING: Toxic substances
  • Danger of poisoning or suffocation
  • Danger of burns to the eyes and skin

    → Ventilate the work area well.

    → Never ingest or inhale.

    → Read specific information on the Hazard Sheet.

    → Wear personal protective gear.

    → Do not smoke, eat or drink in the work area.

WARNING: Hot fluid
  • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

WARNING: Highly inflammable or explosive materials
  • Danger of fire or explosion

    → Avoid contact with hot parts or sources of ignition.

    → Use suction to remove ignitable vapours.

    → Attach warning sign in a clearly visible position.

    → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.

    → Secure collection containers/vessels to prevent them from tipping over.

  1. Release and disconnect electric plug connection -1-  .

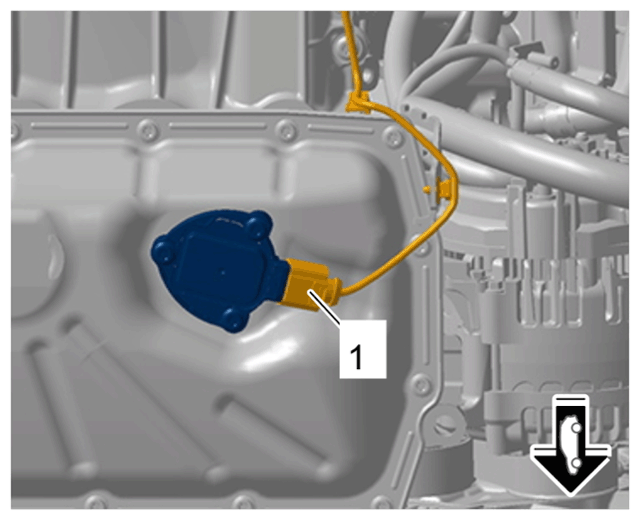

    G15209322Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Remove holder -1-  .

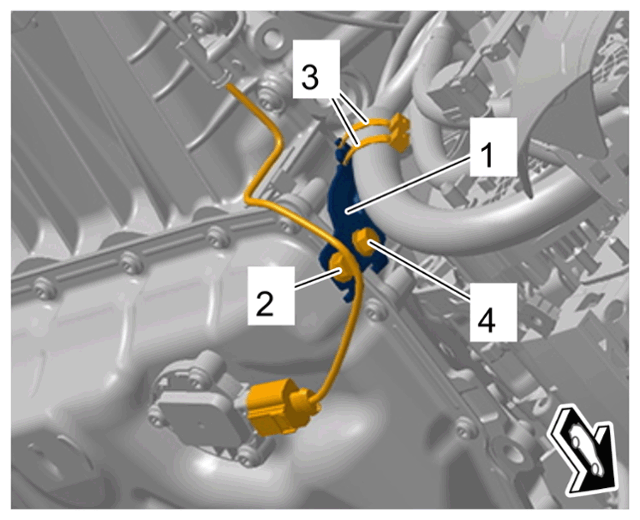

    G15209323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder

    1. 2.1  Unclip line clips -2-  .
    2. 2.2  Cut tie-wrap -3-  .
    3. 2.3  Unscrew screw -4-  .
    4. 2.4  Remove holder -1-  .

      Information

      Check for residual oil when removing the oil pan.

  3. Remove oil pan -1-  .

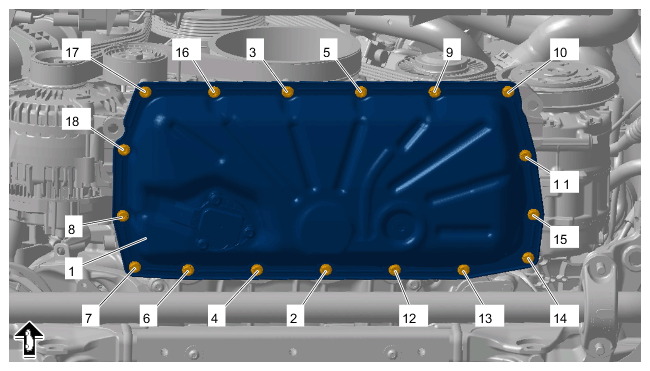

    Fig 1: Oil Pan Screws Loosening Sequence
    G15209324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil pan

    1. 3.1  Unscrew screws in the sequence -18 to 2-  .
    2. 3.2  Loosen and remove oil pan -1-  .

      Information

      Sealing faces must be free of oil and grease!

    3. Clean sealing faces on the oil pan and oil guide housing using a special plastic brush for drills to remove residual sealant.
