Removing Oil Cooler

Information

Risk of contaminating the lubricating system

• Cover open parts of the cylinder head.

1. Disconnect positive crankcase ventilation line -1-  at the right intake distributor. -2-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

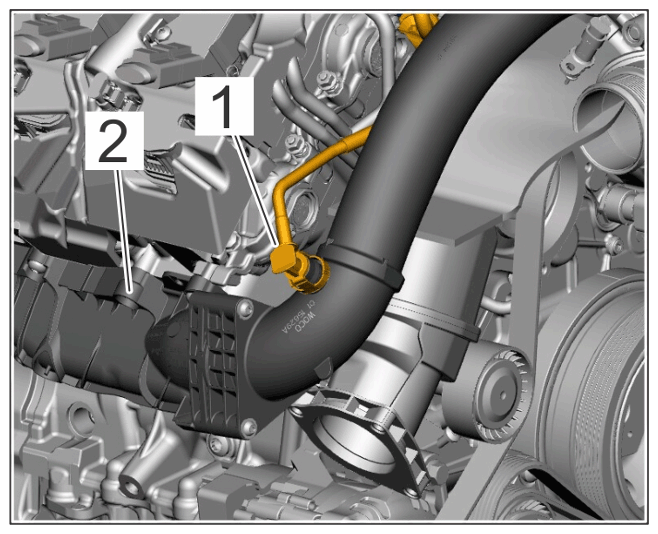

   Positive crankcase ventilation line on intake distributor

2. Press positive crankcase ventilation line aside -1-  using a screwdriver/wedge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

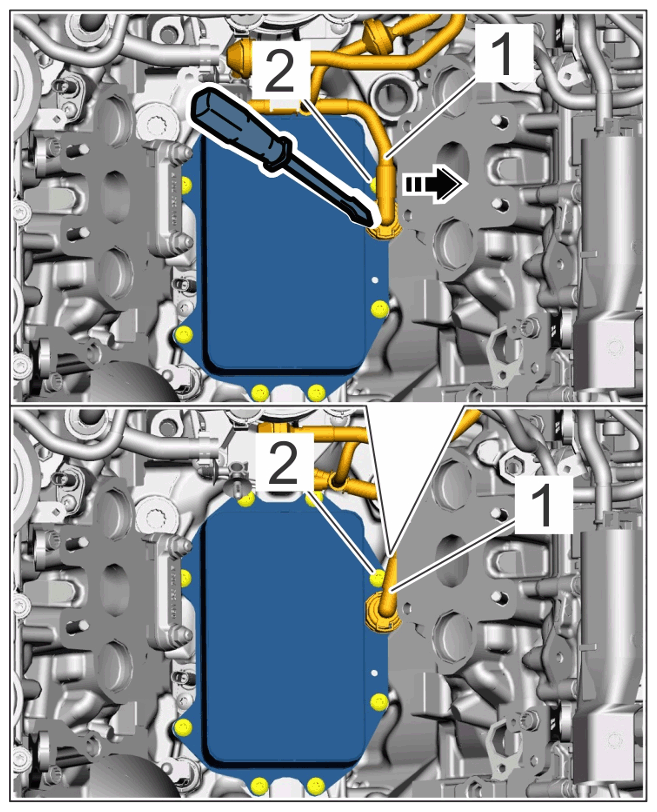

   Positive crankcase ventilation line oil cooler

   1. 2.1  Unscrew screw. -2-

      Information

      Risk of contaminating the oil cooler.

      Cover open parts of the oil cooler.

3. Remove oil cooler. -3-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

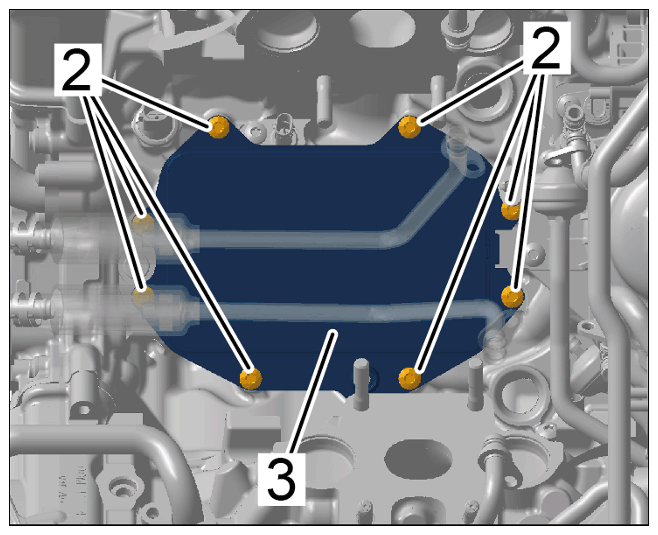

   Removing oil cooler

   1. 3.1  Unscrew screws. -2-
   2. 3.2  Loosen oil cooler -3-  and remove with positive crankcase ventilation line.
   3. 3.3  Remove residual sealant from the oil cooler -3-  and cylinder block using a rotating plastic brush.
