Removing Oil-Temperature Regulator

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

  1. Pull oil-temperature regulator -1-  out of the crankcase.

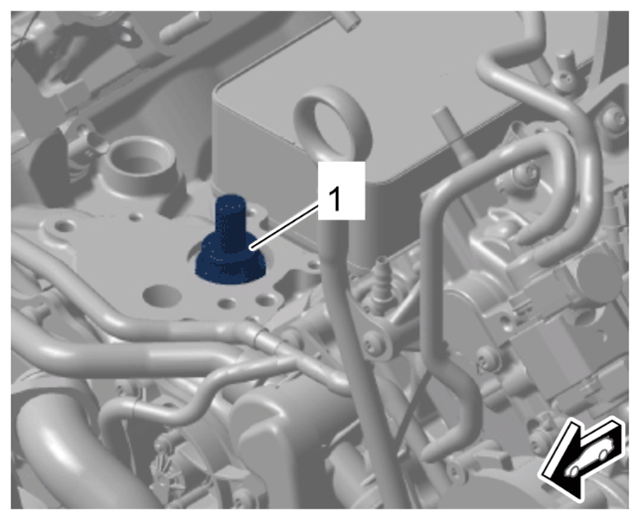

    G15209300Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil-temperature regulator
