Removing Oil Pressure Control Valve

WARNING: This page is about a different variant/trim than selected.

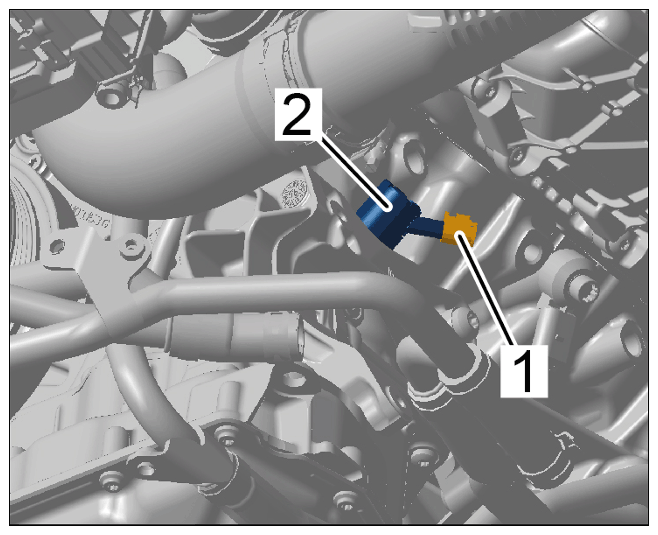

Release and disconnect electric plug connection -1- on the oil pressure control valve -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on oil pressure control valve

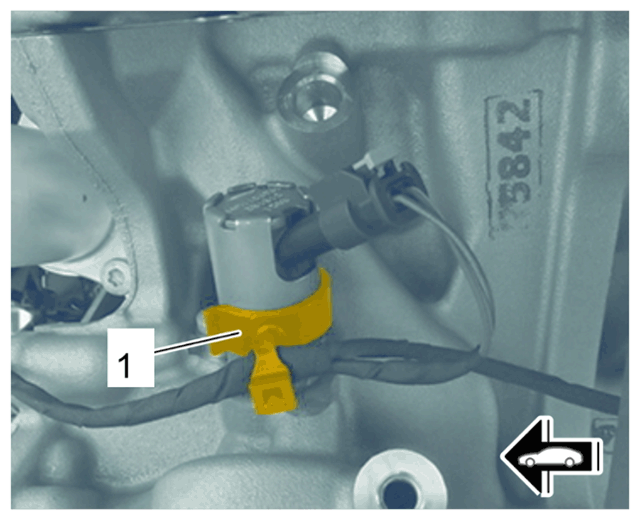

Unclip holder -1- for electric line from oil pressure control valve.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining clip for electric line for oil pressure control valve

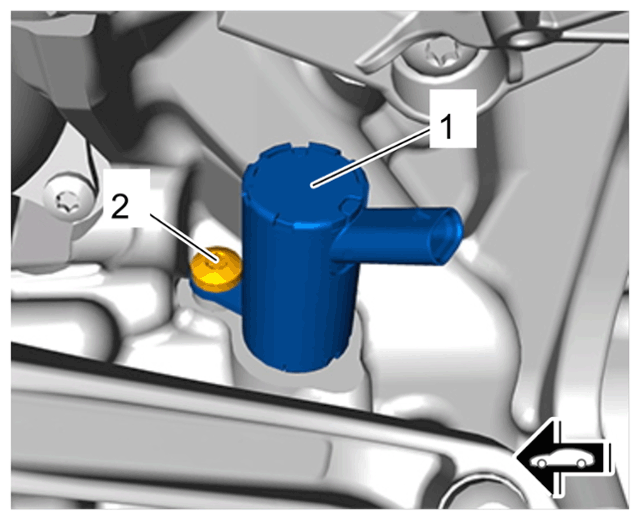

Remove oil pressure control valve -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pressure control valve screws
1. 3.1 Unscrew screw on oil pressure control valve -2- .
2. 3.2 Remove oil pressure control valve -1- from the crankcase.
