Removing Oil Pump

WARNING: This page is about a different variant/trim than selected.

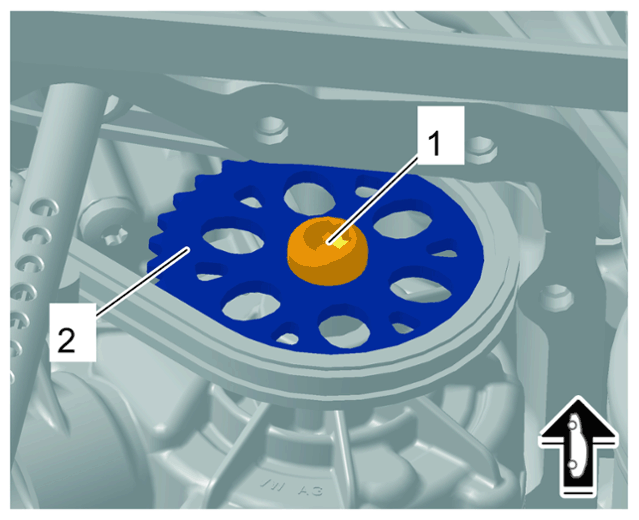

Disconnect sprocket -2- from oil pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for sprocket on oil pump
1. 1.1 Counter at the sprocket -2- using > T10172A - counter-hold tool and unscrew screw -1- .
2. 1.2 Pull sprocket -2- off the oil pump and leave it in installation position.

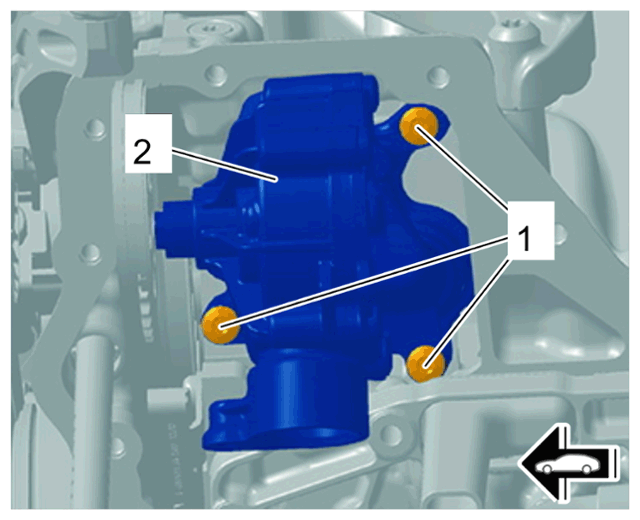

Unscrew screws -1- and remove oil pump -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pump threaded joint
