Removing Oil Temperature Sensor

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

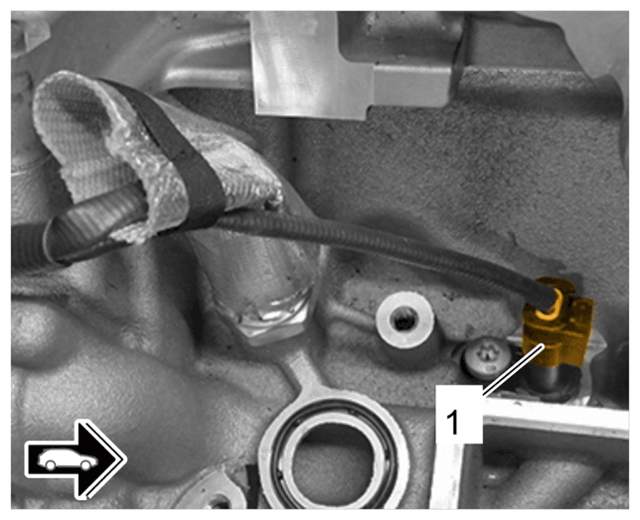

  1. Release and disconnect electric plug connection for oil temperature sensor -1-  .
    G15209276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for oil temperature sensor

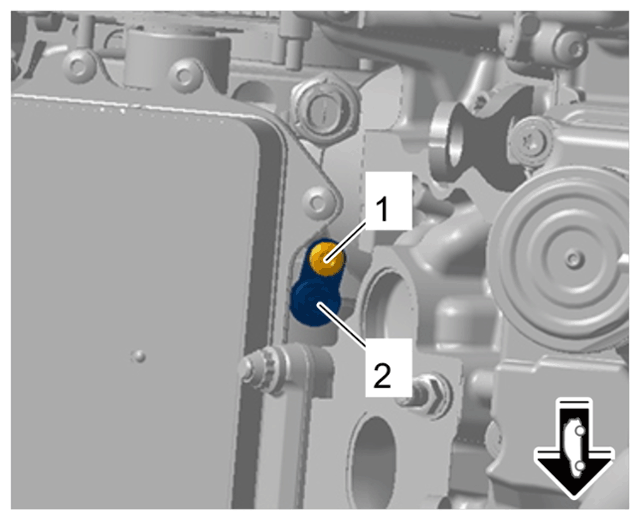

  2. Unscrew screws on oil temperature sensor -1-  and pull out oil temperature sensor -2-  .
    G15209277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil temperature sensor
