Removing Oil Pressure Switch

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

  1. Pull heat protection -1-  up to expose the electric plug connection -2-  .
    G15209272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat protection

  2. Release and disconnect electric plug connection -1-  at the oil pressure switch -2-  .

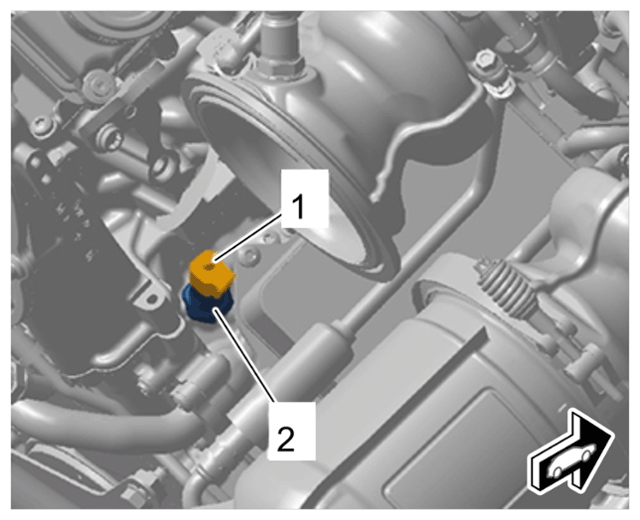

    G15209273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for oil pressure switch

  3. Collect emerging engine oil.
  4. Unscrew oil pressure switch -1-  using > T40175 - articulated wrench  .

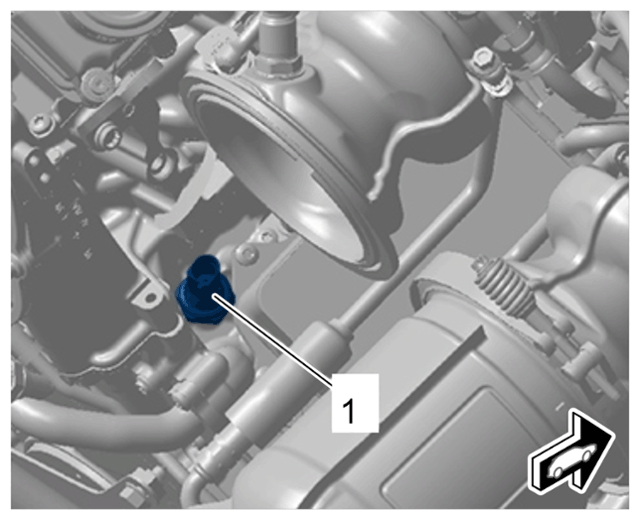

    G15209274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil pressure switch
