Checking Engine-Oil Level Using Oil Dipstick

Information

Generally, the engine-oil level should be checked using the oil level display in the instrument cluster. If the oil level display is not available, check the oil level using special tool T40178.

Information

Prerequisites for checking the engine oil level:

• Vehicle is level,
• engine at operating temperature,
• start the engine and leave it running at idle speed for one minute and then stop it,
• Check the engine oil level when the engine has been stopped for two minutes.

1. > T40178B - Oil gauge tester -1-  must be adjusted. Read the relevant values from the table.

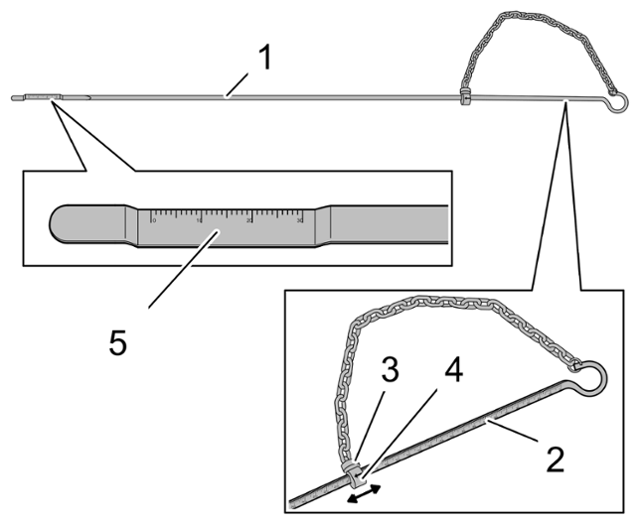

   Fig 1: Oil Gauge Tester Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil gauge tester

   1	> T40178B - Oil gauge tester
   2	Scale for adjusting ring
   3	Knurled screw
   4	Adjusting ring
   5	Scale for oil level

2. Position adjusting ring -2-  according to the value in the table.

   The adjustment value is read off on the lower end of the adjusting ring -4-  !

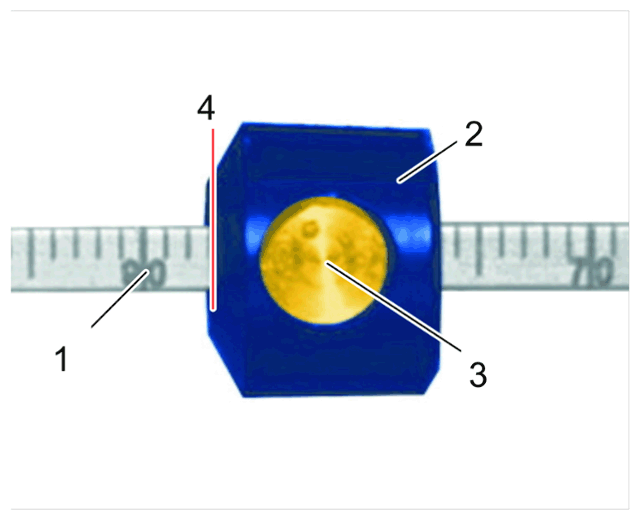

   Fig 2: Adjustment Value On Oil Gauge Tester Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Adjustment value on oil gauge tester

   1	Oil dipstick
   2	Adjusting ring
   3	Knurled screw
   4	Edge showing adjustment value

3. Check engine-oil level.
   1. 3.1  Remove stopper -1-  from guide for oil dipstick using > 3438 - hook  .

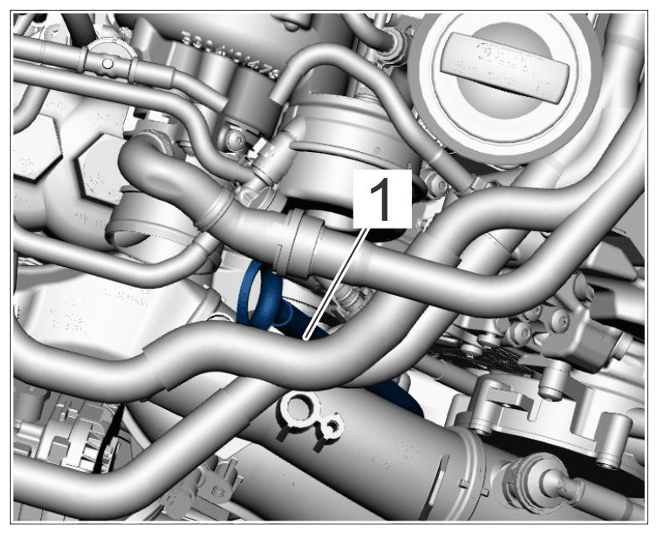

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Inspection opening for engine oil

   2. 3.2  > T40178B - Oil gauge tester  must be pushed as far as it will go (adjusting ring) into the oil dipstick guide, then pull it out again.
   3. 3.3  Read off the engine-oil level on the oil level scale.

      Specifications for adjustment values and measured values:

      Vehicle/model	Engine	Adjustment value at adjusting ring [mm]	Oil level "minimum" value on oil level scale	Oil level "maximum" value on oil level scale
      Cayenne Hybrid China	2.0 R4 Turbo	60	0 mm	16 mm
      Cayenne	3.0 V6 Turbo	76	0 mm	14 mm
      Cayenne S	2.9 V6 Turbo	76	0 mm	14 mm
      Cayenne Hybrid	3.0 V6 Turbo	76	0 mm	10 mm
      Cayenne Turbo/GTS	4.0 V8 Turbo	110	0 mm	21 mm
      Cayenne Turbo S Hybrid	4.0 V8 Turbo	110	0 mm	16 mm

4. Insert stopper into the oil dipstick guide.
5. Correct the oil level if necessary.

   > 170117 DRAINING AND FILLING ENGINE OIL .
