Removing Trim Panel For (Centre) Loudspeaker

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

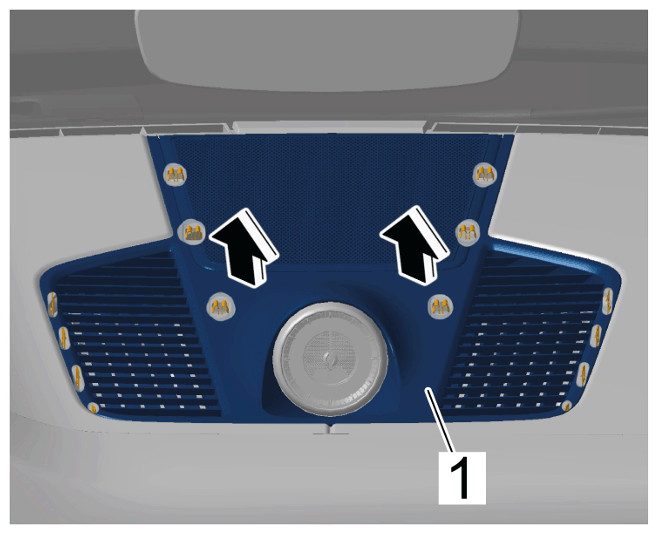

  1. Unclip trim panel for (centre) loudspeaker -1-Arrows-  and remove it until the electric plug connection is accessible.
    G15240403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for (centre) loudspeaker

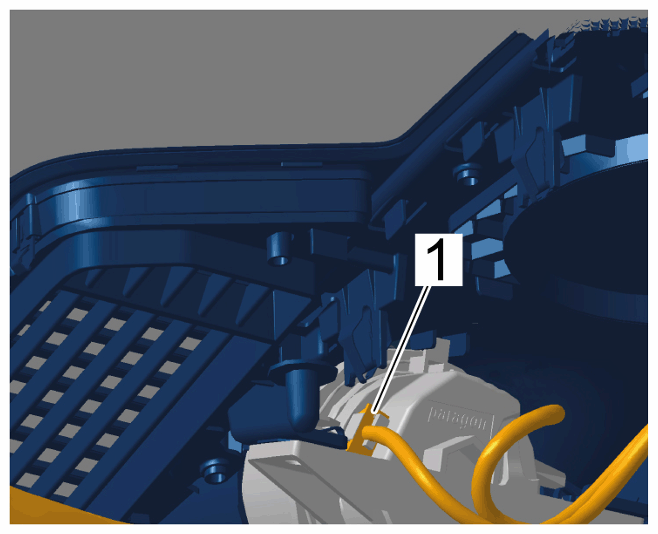

  2. Release and unplug electric plug connection -1-  .
    G15240404Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Remove trim panel for (centre) loud speaker.
