Removing Rear Door Panel

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

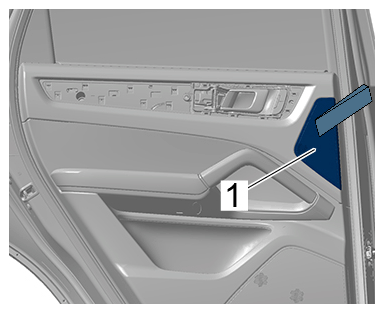

  1. Unclip loudspeaker trim -1-  using a plastic wedge and remove it.
    G15240369Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loudspeaker trim

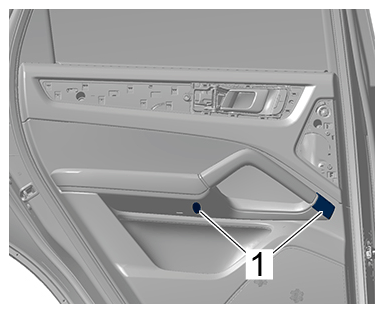

  2. Unclip covers -1-  using a plastic wedge and remove them.
    G15240370Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers

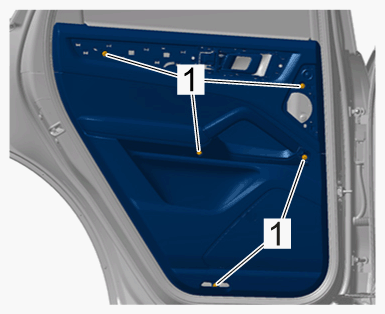

  3. Unscrew screws -1-  .
    G15240371Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

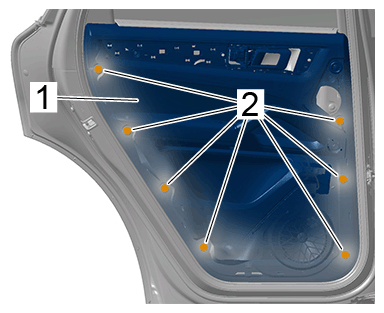

  4. Loosen rear door panel -1-  .
    G15240372Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips

    1. 4.1  Unclip clips -2-  using a plastic wedge.
    2. 4.2  Remove rear door panel -1-  .

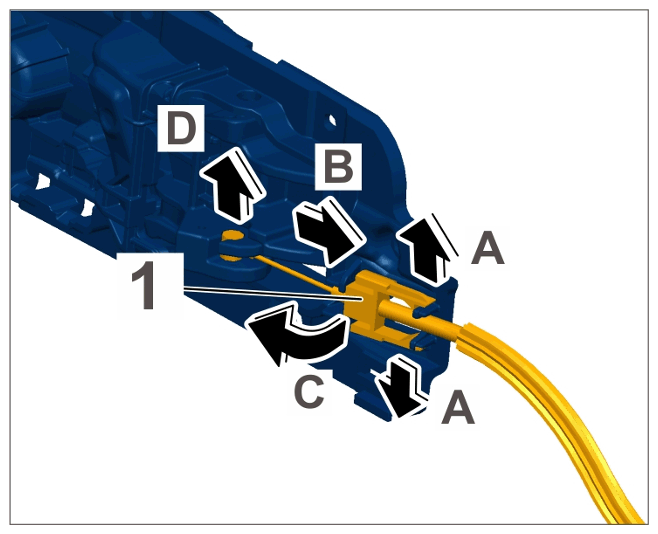

  5. Disengage cable for door opener -1-  .
    G15240373Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable for door opener

    1. 5.1  Spread locking lugs outwards -arrow A-  and pull cable for door opener -1-  to the rear -arrow B-  .
    2. 5.2  Swivel cable for door opener -1-  in direction of arrow -arrow C-  until the driver at the front is free.
    3. 5.3  Remove cable for door opener -1-arrow D-  .

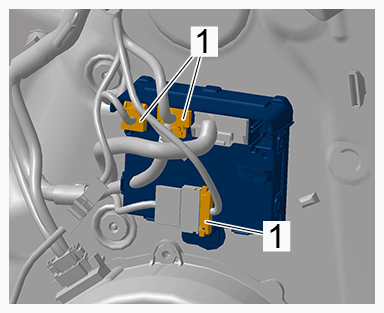

  6. Release and disconnect electric plug connections -1-  .
    G15240374Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  7. Remove rear door panel.
