Preliminary Work

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door panel trim.
- > 70611903 REMOVING AND INSTALLING REAR DOOR PANEL TRIM
Remove door warning light.
- > WM, 961619 REMOVING AND INSTALLING DOOR WARNING LIGHT

For sun blind (on door window):

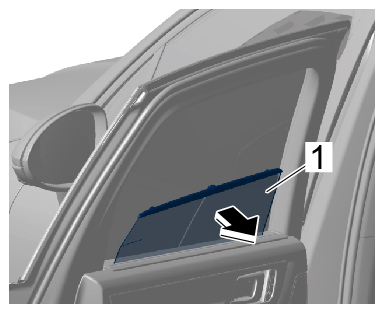

3.1 Extend sun blind (on door window) -1- and pull sun blind (on door window) -1- away from the door window slightly -Arrow- using your hand.

G15240362

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind (on door window)

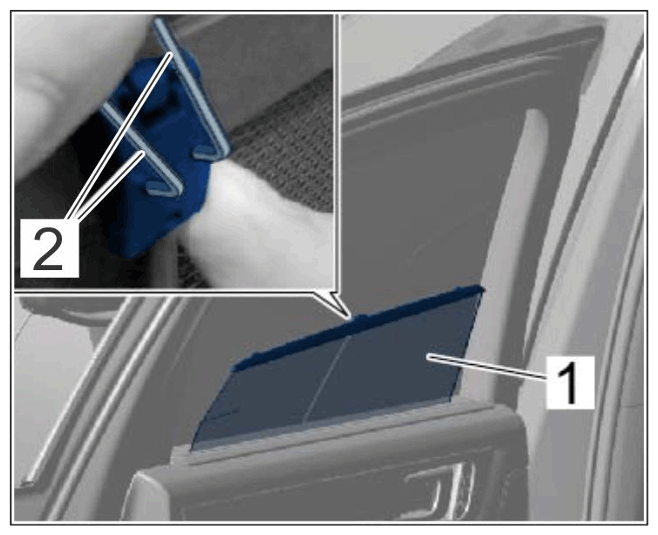

3.2 Release the spring mechanism for the actuating rod on the sun blind (on door window) -1- by pressing it using a 1.5-mm Allen key -2- .

G15240363

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring mechanism for actuating rod (Cayenne)

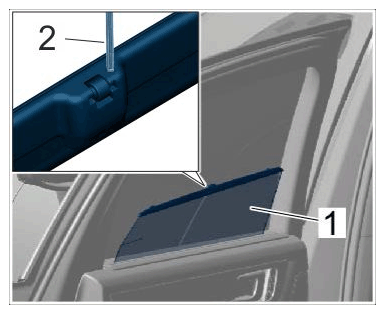

G15240364

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring mechanism for actuating rod (Cayenne Coupe)

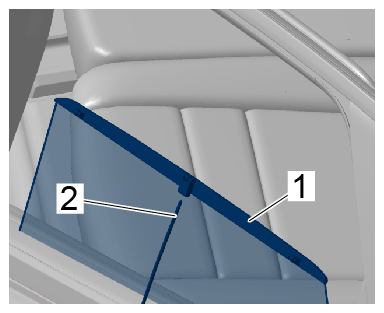

3.3 Pull sun blind (on door window) -1- off the actuating rod -2- .

G15240365

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind (on door window)

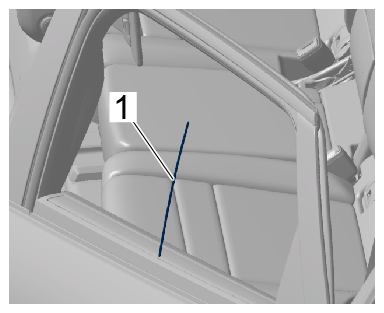

3.4 Retract actuating rod -1- .

G15240366

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Actuating rod

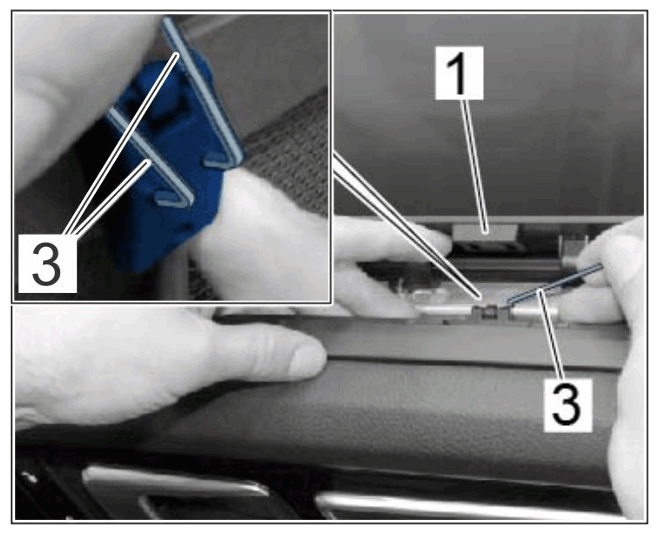

3.5 If sun blind (on door window) is defective and retracted

Open cover -1- by hand and release sun blind (on door window) -2- by pressing the spring mechanism for the actuating rod using a 1.5 mm Allen key -3- .

G15240367

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind (Cayenne)

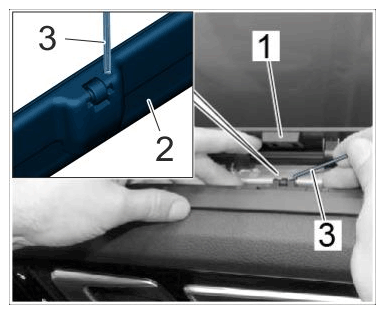

G15240368

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun blind (Cayenne Coupe)
