Removing C-Pillar Trim Panel (Upper Part)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the forces during removal and thereby the risk of damage, a suitable tool must be used as a support during removal at accessible connection points.

Information

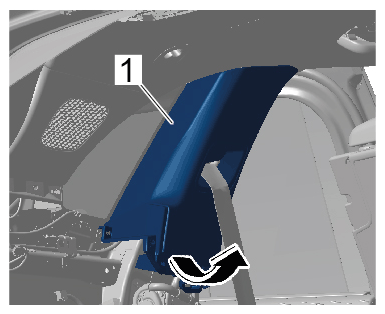

Move belt adjustment cover panel to its upper end position.
Set belt adjustment to upper end position.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

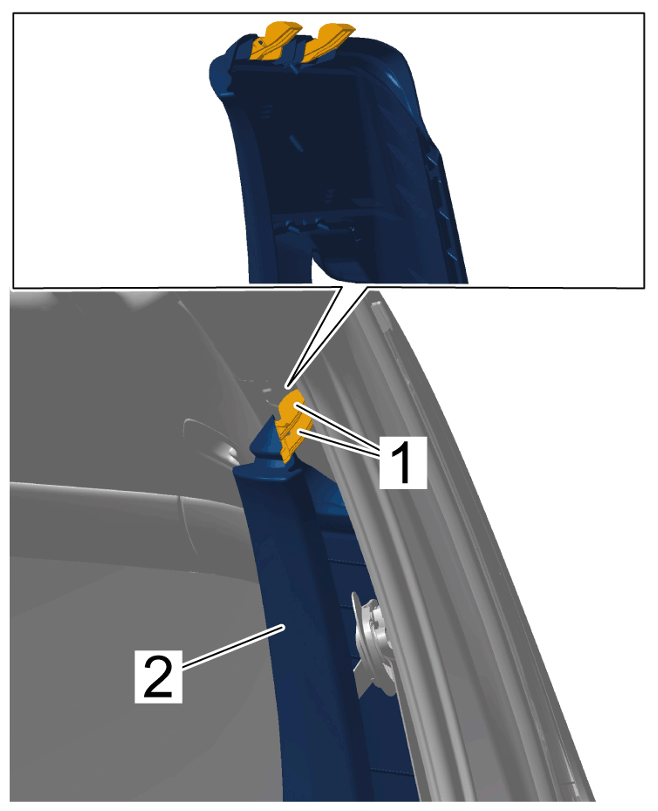

Clips on C-pillar trim panel (upper part)

When swivelling out the C-pillar trim panel (upper part) -2- , make sure not to damage the guide lugs -1- .

Unclip C-pillar trim panel (upper part) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

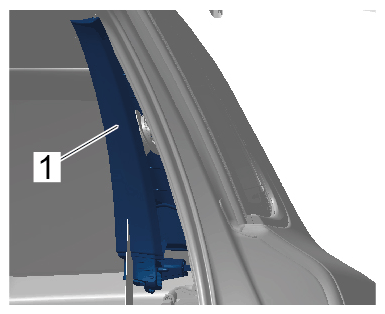

C-pillar trim panel (upper part)
Swivel out C-pillar trim panel (upper part) -1-Arrow- and remove it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

C-pillar trim panel (upper part)
Feed rear three-point belt through the opening in the belt adjustment cover panel.
