Removing (Lower Part Of) C-Pillar Trim Panel

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

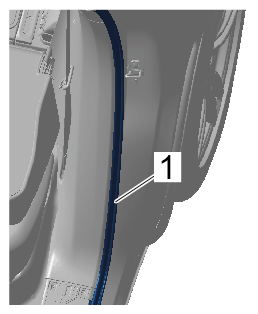

Detach door seal -1- in the C-pillar trim panel (lower part) area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door seal

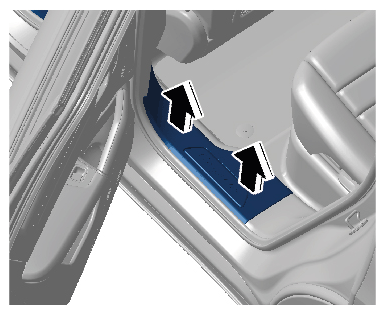

Lift rear inner door sill trim as far as required -Arrows- until the C-pillar trim panel (lower part) is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear inner door sill trim

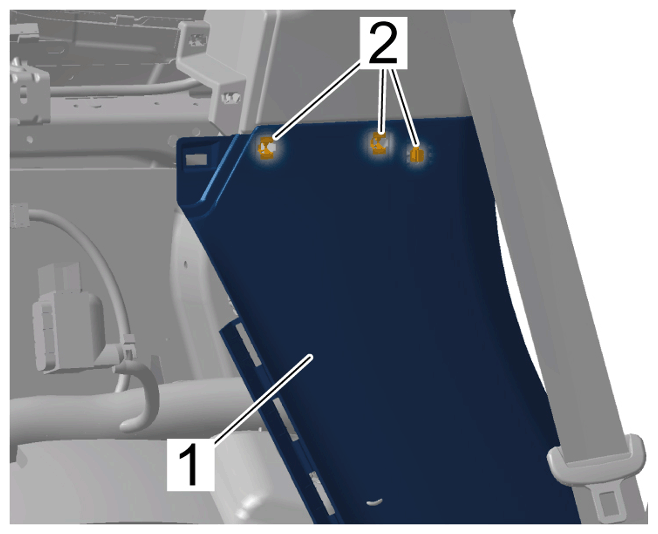

Unclip clamps -2- and unclip C-pillar trim panel (lower part) -1- at the C-pillar trim panel (upper part).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

C-pillar trim panel (lower part)

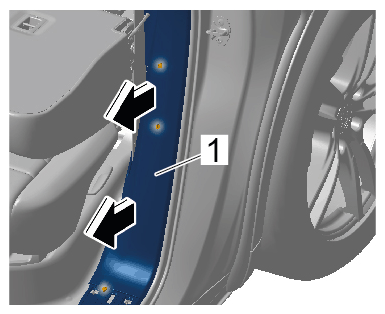

Unclip C-pillar trim panel (lower part) -1- at the C-pillar -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

C-pillar trim panel (lower part) on C-pillar

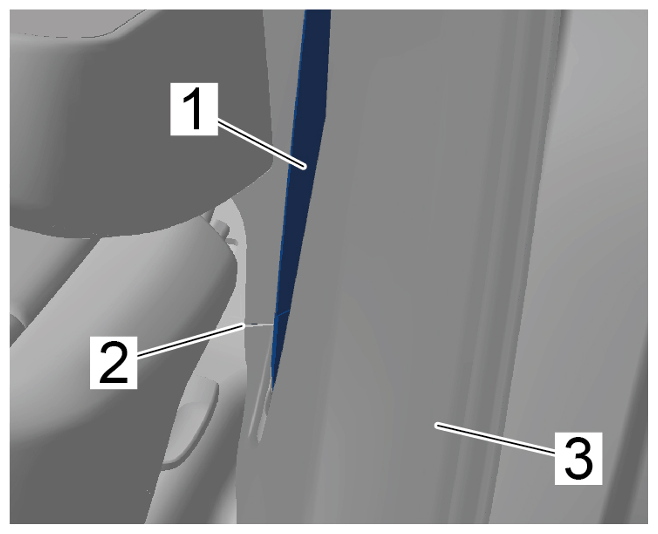

Guide out rear three-point belt -1- through the yap -2- in the C-pillar trim panel (lower part) -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap in C-pillar trim panel (lower part)
Remove C-pillar trim panel (lower part) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

C-pillar trim panel (lower part) on C-pillar
