Removing B-Pillar Trim Panel (Lower Part)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the forces during removal and thereby the risk of damage, a suitable tool must be used as a support during removal at accessible connection points.

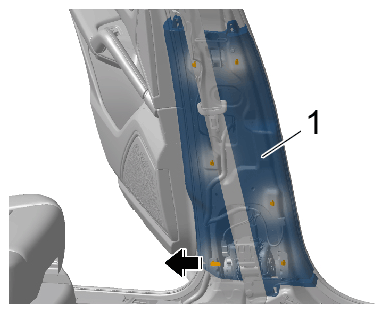

  1. Carefully unclip B-pillar trim panel (lower part) -1-  and guide it out to the rear -Arrow-  .
    G15240339Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    B-pillar trim panel (lower part)
