Technical Values

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Screw securing front three-point belt to bodyshell Item 1 Tightening torque 40 Nm (30 ftlb.)

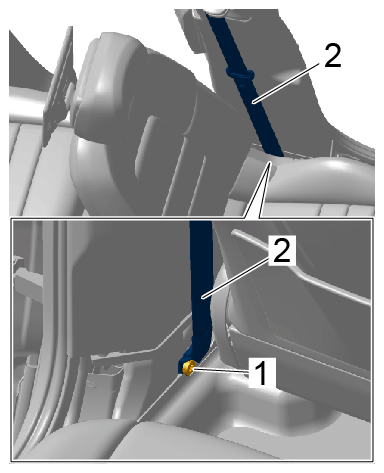

G15240328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Belt fitting
