Removing B-Pillar Trim Panel (Upper Part)

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To reduce the forces during removal and thereby the risk of damage, a suitable tool must be used as a support during removal at accessible connection points.

Information

Move belt adjustment cover panel to its upper end position.
Set belt adjustment to upper end position.

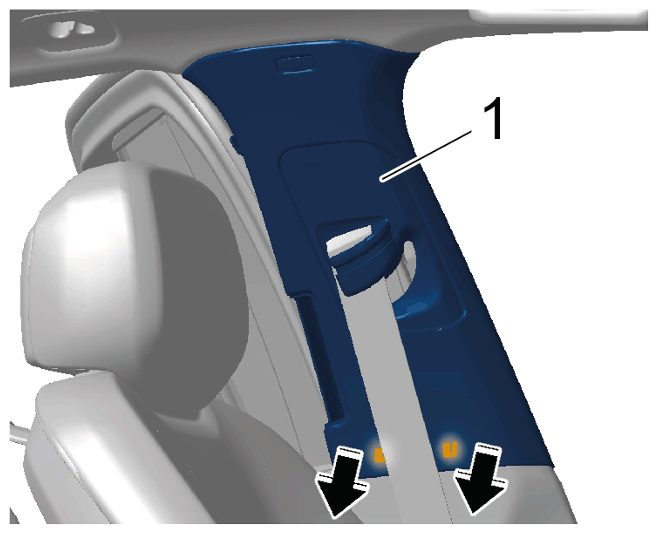

Unclip B-pillar trim panel (upper part) -1- from B-pillar trim panel (lower part) -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar trim panel (upper part)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

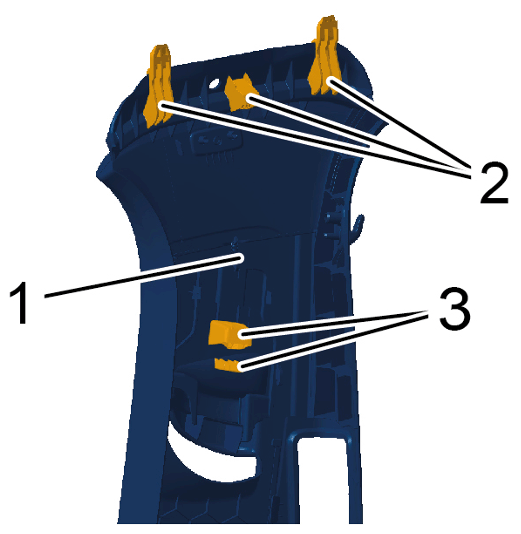

Upper part of B-pillar trim panel
- When swivelling out the upper part of the B-pillar trim panel -1- make sure not to damage the guide lugs -2, 3- .

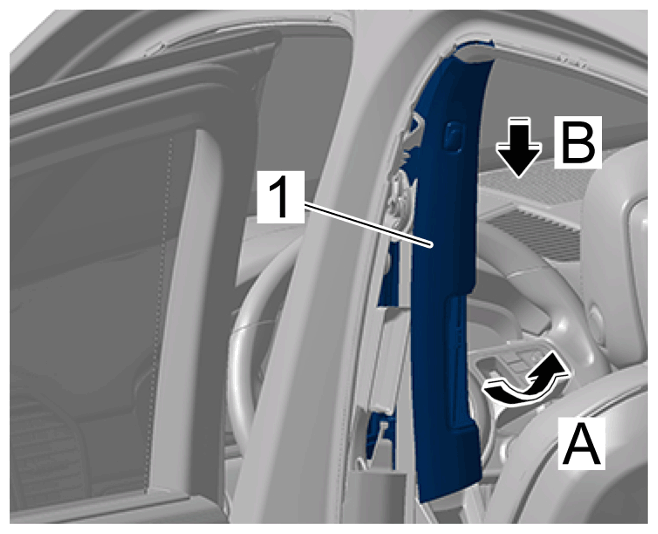

Swivel out B-pillar trim panel (upper part) -1-arrow A- and remove it downwards -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar trim panel (upper part)
Feed the seat belt through the opening in the belt adjustment cover panel.
