Removing Rear Handle

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

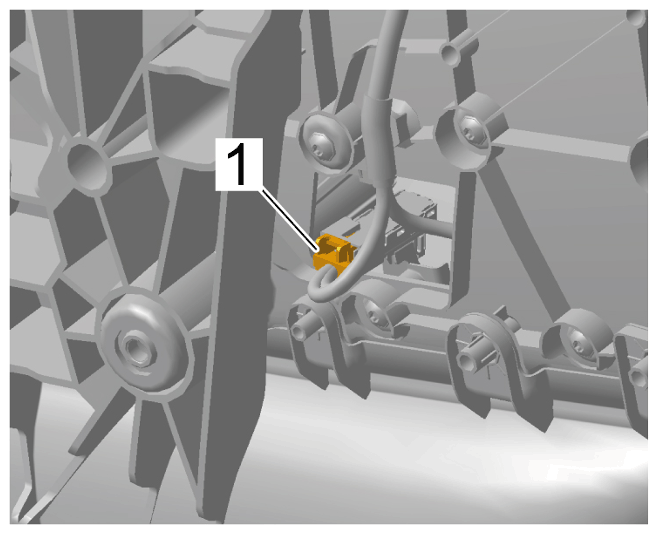

  1. Release and disconnect electric plug connection -1-  from ambient lighting.
    G15240313Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

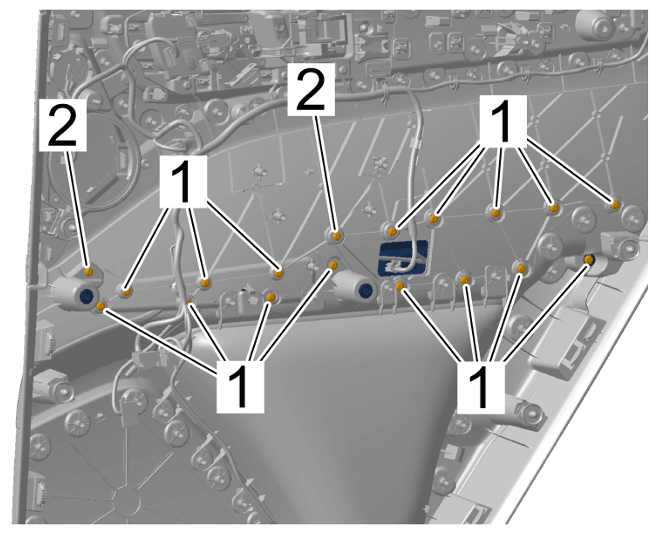

  2. Unscrew screws -1 and 2-  and remove rear handle together with the armrest.
    G15240314Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

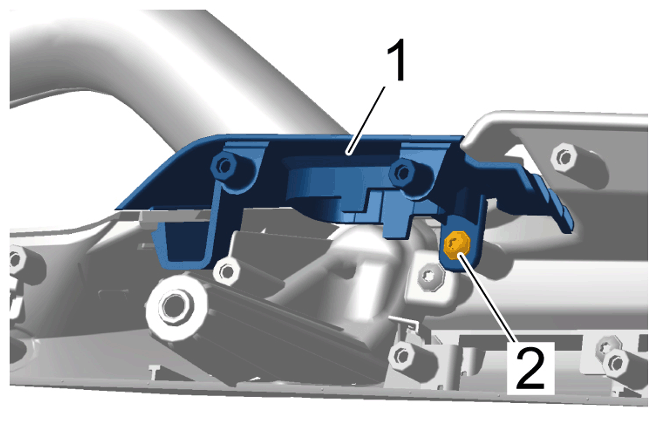

  3. Unscrew screw -2-  and remove trim -1-  .
    G15240315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

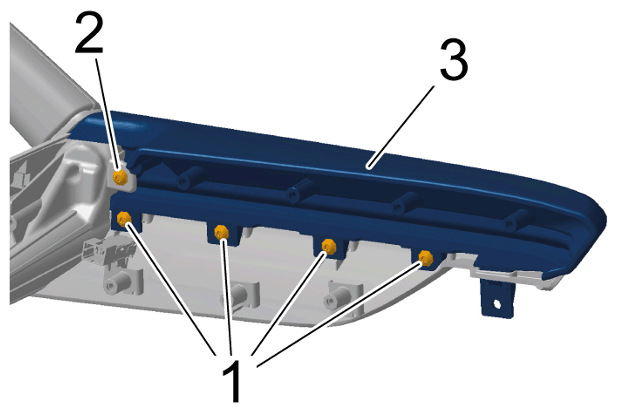

  4. Unscrew screws -1 and 2-  and remove armrest -3-  by pulling it upwards.
    G15240316Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws for armrest

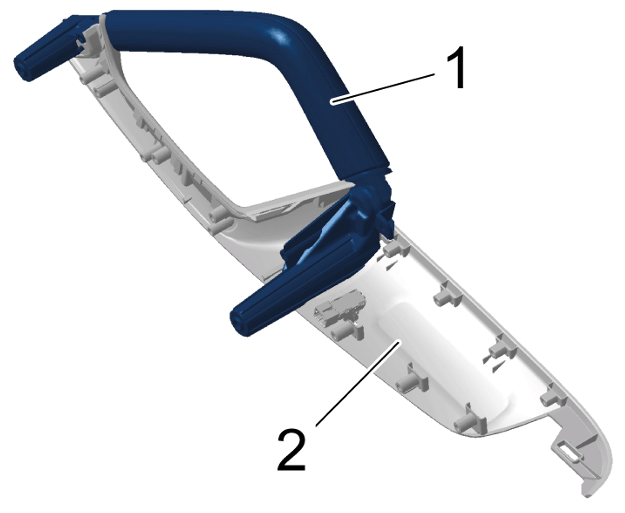

  5. Remove handle -1-  from the outer tray -2-  of the armrest.
    G15240317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Handle
