Removing Trim For Rear Door Panel

WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip trim for rear door panel -1-  from back to front using a plastic wedge.
    G15240306Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim for rear door panel

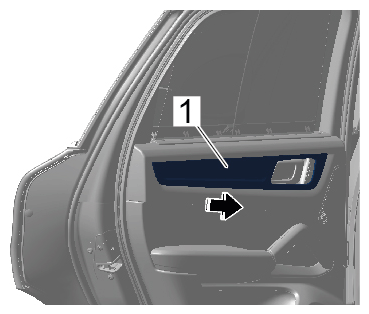

  2. Slide trim for rear door panel -1-  forward -Arrow-  and remove it.
    G15240307Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim for rear door panel
