Installing Trim For Rear Door Panel
WARNING: This page is about a different car, the 2023 Porsche Cayenne, 2022 Porsche Cayenne, 2021 Porsche Cayenne, and 2020 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information

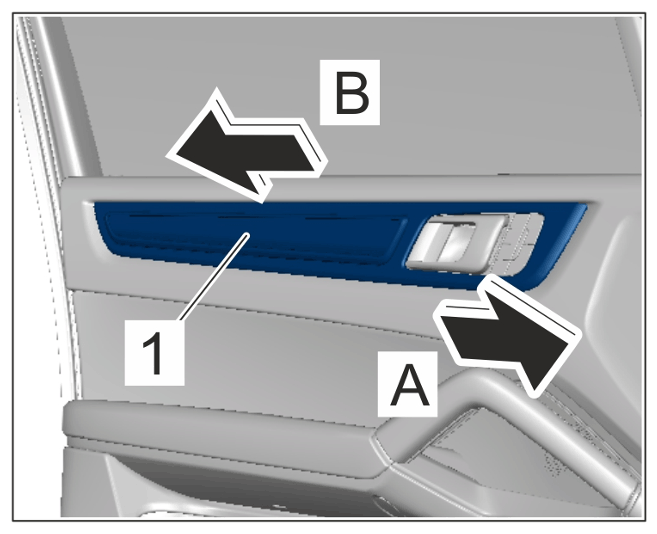

During installation, make sure to fit the door panel trim -1-
at the middle centring mandrel first and then clip it in towards the front -arrow A-
and rear -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Door panel trim
- Install trim for rear door panel.
